chainflex ® cable Jacket Shield Bend radius e-chain ® [factor x d] Temperature e-chain ® from/to [°C] Approvals and standards Oil-resistant Torsion-resistant v max. [m/s] unsupported v max. [m/s] gliding a max. Page

Data cables – wound in layers

CF240 PVC  10 +5/+70  3 2 20 146

CF240.PUR PUR  10 -25/+80  3 2 20 150

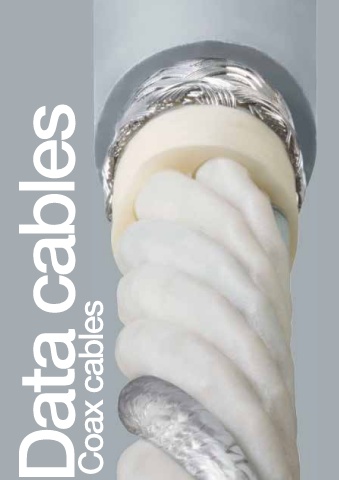

Data cables

Data cables – twisted pair

CF211 PVC  7.5 +5/+70  5 3 50 154

CF211.PUR PUR  7.5 -25/+80  5 3 50 158

CF11 TPE  6.8 -35/+100  10 6 100 162

Data cables – twisted pair with pair shield

CF112 PUR  10 -25/+80  10 5 80 166

CF12 TPE  10 -35/+100  10 6 100 170

Data cables – wound in layers

CF298 TPE 4 -35/+90   10 6 100 172

CF299 TPE  4 -35/+90  10 6 100 174

Coax cable

CFKoax TPE  10 -35/+100  10 5 100 176
-35/+70
Coax cables
Twistable data cable (twistable cables chapter Page 378 )

CFROBOT3 PUR  10 -25/+80   390

®
36-month chainflex guarantee
Guaranteed service life for predictable reliability
 Selection table page 144
®
With the help of the chainflex service life calculator, you can quickly and easily
®
calculate the expected service life of chainflex cables specifically for your application:
