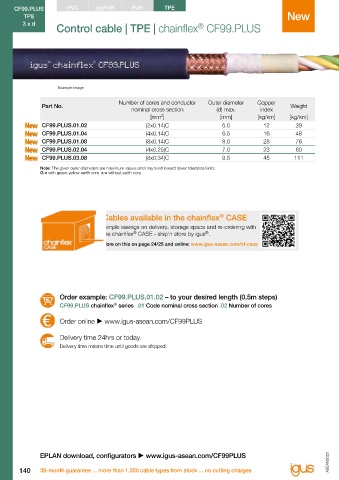

Page 146 - ASEAN Chainflex Catalogue 2023

CF99.PLUS PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF99.PLUS
TPE New Travel distance unsupported 1 2 3 4 5 6 ≥ 400m TPE
3 x d ® Oil resistance none 1 2 3 4 highest 3 x d
Control cable | TPE | chainflex CF99.PLUS Class 7.5.4.1 Torsion none 1 2 3 4 ±360°

Example image

Number of cores and conductor Outer diameter Copper
Part No. Weight
nominal cross section (d) max. index
[mm²] [mm] [kg/km] [kg/km]
CF99.PLUS.01.02 (2x0.14)C 6.0 12 39
CF99.PLUS.01.04 (4x0.14)C 6.5 16 48
CF99.PLUS.01.08 (8x0.14)C 8.0 28 76
CF99.PLUS.02.04 (4x0.25)C 7.0 23 60
CF99.PLUS.03.08 (8x0.34)C 9.5 45 111
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core

Cables available in the chainflex CASE
®
Simple savings on delivery, storage space and re-ordering with
the chainflex CASE - ship'n store by igus . Smaller and smaller installation spaces, shorter and shorter cycle
®
®
times, 99% availability. These are the requirements that innovative
More on this on page 24/25 and online: www.igus-asean.com/cf-case
automation specialists must meet.
To do this, igus has been working on an unprecedented innovation
®
for more than ten years.
®
The new generation of chainflex CF98.PLUS (unshielded) and
®
chainflex CF99.PLUS (shielded) control cables are a consistent
development of the well-known, highly successful CF98/CF99 and
Order example: CF99.PLUS.01.02 – to your desired length (0.5m steps) CF298 and CF299 control cable series.
®
CF99.PLUS chainflex series .01 Code nominal cross section .02 Number of cores
Systematic research on process technology and insulation and
Order online  www.igus-asean.com/CF99PLUS conductor materials supported by a wide variety of test series in the
®
igus laboratory enabled igus to develop this new generation of
®
Delivery time 24hrs or today. control cables.
Delivery time means time until goods are shipped. The result is cable series that can be used reliably with a minimum
bend radius of just 3 x d (3 x cable diameter).

The cross-sectional areas range from 0.14mm² to 0.5mm² in both the
shielded and unshielded versions.
®
This makes igus the first and only manufacturer to offer catalogue
®
goods for use in an e-chain with a guaranteed service life of
100 million double strokes!
This is with acceleration values of up to 100m/s².

EPLAN download, configurators  www.igus-asean.com/CF99PLUS
