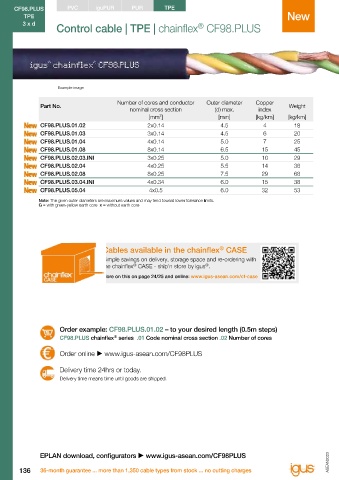

Page 142 - ASEAN Chainflex Catalogue 2023

CF98.PLUS PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF98.PLUS
TPE New Travel distance unsupported 1 2 3 4 5 6 ≥ 400m TPE
3 x d ® Oil resistance none 1 2 3 4 highest 3 x d
Control cable | TPE | chainflex CF98.PLUS Class 7.5.4.2 Torsion none 1 2 3 4 ±360°

Example image

Number of cores and conductor Outer diameter Copper
Part No. Weight
nominal cross section (d) max. index
[mm²] [mm] [kg/km] [kg/km]
CF98.PLUS.01.02 2x0.14 4.5 4 18
CF98.PLUS.01.03 3x0.14 4.5 6 20
CF98.PLUS.01.04 4x0.14 5.0 7 25
CF98.PLUS.01.08 8x0.14 6.5 15 45
CF98.PLUS.02.03.INI 3x0.25 5.0 10 29
CF98.PLUS.02.04 4x0.25 5.5 14 36
CF98.PLUS.02.08 8x0.25 7.5 29 68
CF98.PLUS.03.04.INI 4x0.34 6.0 15 38
CF98.PLUS.05.04 4x0.5 6.0 32 53
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core

Smaller and smaller installation spaces, shorter and shorter cycle
times, 99% availability. These are the requirements that innovative
Cables available in the chainflex CASE automation specialists must meet.
®
®
Simple savings on delivery, storage space and re-ordering with To do this, igus has been working on an unprecedented innovation
®
®
the chainflex CASE - ship'n store by igus . for more than ten years.
The new generation of chainflex CF98.PLUS (unshielded) and
®
More on this on page 24/25 and online: www.igus-asean.com/cf-case
chainflex CF99.PLUS (shielded) control cables are a consistent
®
development of the well-known, highly successful CF98/CF99 and
CF298 and CF299 control cable series.
Systematic research on process technology and insulation and
conductor materials supported by a wide variety of test series in the
Order example: CF98.PLUS.01.02 – to your desired length (0.5m steps) igus laboratory enabled igus to develop this new generation of
®
®
®
CF98.PLUS chainflex series .01 Code nominal cross section .02 Number of cores control cables.
The result is cable series that can be used reliably with a minimum
Order online  www.igus-asean.com/CF98PLUS bend radius of just 3 x d (3 x cable diameter).

Delivery time 24hrs or today. The cross-sectional areas range from 0.14mm² to 0.5mm² in both the
Delivery time means time until goods are shipped. shielded and unshielded versions.
This makes igus the first and only manufacturer to offer catalogue
®
goods for use in an e-chain with a guaranteed service life of
®
100 million double strokes!
This is with acceleration values of up to 100m/s².

EPLAN download, configurators  www.igus-asean.com/CF98PLUS
