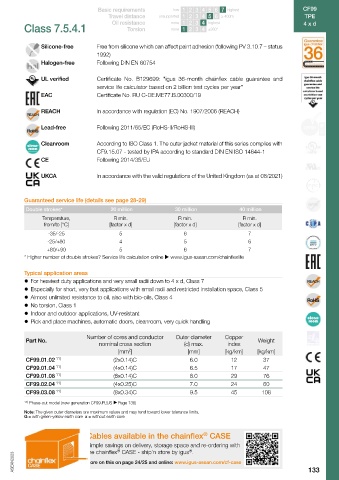

CF99 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF99
TPE Travel distance unsupported 1 2 3 4 5 6 ≥ 400m TPE
4 x d ® Oil resistance none 1 2 3 4 highest 4 x d
Control cable | TPE | chainflex CF99 Class 7.5.4.1 Torsion none 1 2 3 4 ±360°

40 million 4 x d 100m Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
1992)
Double strokes guaranteed Bend radius, e-chain ® Travel distance, e-chain ®
Halogen-free Following DIN EN 60754

z For heaviest duty applications and especially UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
small radii down to 4 x d New generation service life calculator based on 2 billion test cycles per year"
z TPE outer jacket CF99.PLUS EAC Certificate No. RU C-DE.ME77.B.00300/19
z Shielded  Page 138
z Oil and bio-oil-resistant REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
z PVC and halogen-free
z Low-temperature-flexible Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)
z Hydrolysis and microbe-resistant
Cleanroom According to ISO Class 1. The outer jacket material of this series complies with
Dynamic information CF9.15.07 - tested by IPA according to standard DIN EN ISO 14644-1
Bend radius e-chain linear minimum 4 x d CE Following 2014/35/EU
®
flexible minimum 4 x d
fixed minimum 3 x d UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)
Temperature e-chain linear -35°C up to +90°C
®
flexible -50°C up to +90°C (following DIN EN 60811-504)
fixed -55°C up to +90°C (following DIN EN 50305) Guaranteed service life (details see page 28-29)
v max. unsupported 10m/s Double strokes* 20 million 30 million 40 million

gliding 6m/s Temperature, R min. R min. R min.
a max. 100m/s 2 from/to [°C] [factor x d] [factor x d] [factor x d]
-35/-25 5 6 7
Travel distance Short, very fast applications with small radii and restricted installation space, -25/+80 4 5 6
Class 5 +80/+90 5 6 7
Cable structure * Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife
Conductor Conductor consisting of a highly flexible special alloy.
Typical application areas
Core insulation Mechanically high-quality TPE mixture. z For heaviest duty applications and very small radii down to 4 x d, Class 7
z Especially for short, very fast applications with small radii and restricted installation space, Class 5
Core structure Cores wound in a layer with especially short pitch length. z Almost unlimited resistance to oil, also with bio-oils, Class 4
z No torsion, Class 1
Core identification Colour code in accordance with DIN 47100. z Indoor and outdoor applications, UV-resistant
z Pick and place machines, automatic doors, cleanroom, very quick handling
®
Inner jacket TPE mixture adapted to suit the requirements in e-chains .

Number of cores and conductor Outer diameter Copper
Part No. Weight
Overall shield Extremely bending resistant braiding made of alloy wires. nominal cross section (d) max. index
Coverage linear approx. 70%, optical approx. 90% [mm²] [mm] [kg/km] [kg/km]
Outer jacket Low-adhesion, extremely abrasion-resistant and highly flexible TPE mixture, CF99.01.02 11) (2x0.14)C 6.0 12 37
adapted to suit the requirements in e-chains . CF99.01.04 11) (4x0.14)C 6.5 17 47
®
Colour: Steel blue (similar to RAL 5011) CF99.01.08 11) (8x0.14)C 8.0 29 76
Electrical information CF99.02.04 11) (4x0.25)C 7.0 24 60
Nominal voltage 300/300V CF99.03.08 11) (8x0.34)C 9.5 45 108
11) Phase-out model (new generation CF99.PLUS Page 138)
Testing voltage 1,500V Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core
Example image UV resistance High Cables available in the chainflex CASE
Properties and approvals
®
Simple savings on delivery, storage space and re-ordering with
Oil resistance
Oil-resistant (following DIN EN 60811-404), bio-oil-resistant (following VDMA
®
®
the chainflex CASE - ship'n store by igus .
24568 with Plantocut 8 S-MB tested by DEA), Class 4 ASEAN2023 ASEAN2023 More on this on page 24/25 and online: www.igus-asean.com/cf-case
