CF98 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF98
TPE Travel distance unsupported 1 2 3 4 5 6 ≥ 400m TPE
4 x d ® Oil resistance none 1 2 3 4 highest 4 x d

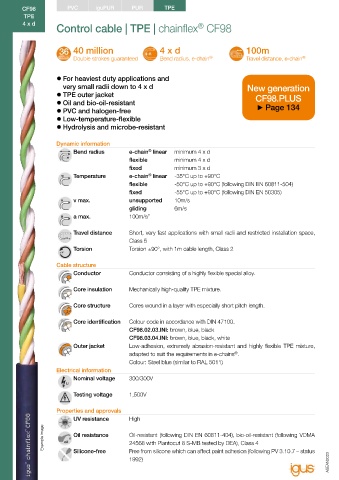

Control cable | TPE | chainflex CF98 Class 7.5.4.2 Torsion none 1 2 3 4 ±360°

40 million 4 x d 100m Halogen-free Following DIN EN 60754
Double strokes guaranteed Bend radius, e-chain ® Travel distance, e-chain ®
UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
service life calculator based on 2 billion test cycles per year"
z For heaviest duty applications and EAC Certificate No. RU C-DE.ME77.B.00300/19
very small radii down to 4 x d New generation
z TPE outer jacket CF98.PLUS REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
z Oil and bio-oil-resistant  Page 134
z PVC and halogen-free Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)
z Low-temperature-flexible
z Hydrolysis and microbe-resistant Cleanroom According to ISO Class 1. The outer jacket material of this series complies with
CF9.15.07 - tested by IPA according to standard DIN EN ISO 14644-1
Dynamic information CE Following 2014/35/EU
Bend radius e-chain linear minimum 4 x d
®
flexible minimum 4 x d UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)
fixed minimum 3 x d
®
Temperature e-chain linear -35°C up to +90°C
flexible -50°C up to +90°C (following DIN EN 60811-504) Guaranteed service life (details see page 28-29)
fixed -55°C up to +90°C (following DIN EN 50305) Double strokes* 20 million 30 million 40 million

v max. unsupported 10m/s Temperature, R min. R min. R min.
gliding 6m/s from/to [°C] [factor x d] [factor x d] [factor x d]
a max. 100m/s 2 -35/-25 5 6 7
-25/+80 4 5 6
Travel distance Short, very fast applications with small radii and restricted installation space, +80/+90 5 6 7
Class 5 * Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife
Torsion Torsion ±90°, with 1m cable length, Class 2 Typical application areas
z For heaviest duty applications and very small radii down to 4 x d, Class 7
Cable structure z Especially for short, very fast applications with small radii and restricted installation space, Class 5
Conductor Conductor consisting of a highly flexible special alloy. z Almost unlimited resistance to oil, also with bio-oils, Class 4
z Torsion ±90°, with 1m cable length, Class 2
Core insulation Mechanically high-quality TPE mixture. z Indoor and outdoor applications, UV-resistant
z Pick and place machines, automatic doors, cleanroom, very quick handling
Core structure Cores wound in a layer with especially short pitch length.

Number of cores and conductor Outer diameter Copper
Part No. Weight
Core identification Colour code in accordance with DIN 47100. nominal cross section (d) max. index
CF98.02.03.INI: brown, blue, black [mm²] [mm] [kg/km] [kg/km]
CF98.03.04.INI: brown, blue, black, white CF98.01.02 11) 2x0.14 4.5 5 18
Outer jacket Low-adhesion, extremely abrasion-resistant and highly flexible TPE mixture, CF98.01.03 11) 3x0.14 4.5 6 20
®
adapted to suit the requirements in e-chains . CF98.01.04 11) 4x0.14 5.0 8 25
Colour: Steel blue (similar to RAL 5011) CF98.01.08 11) 8x0.14 6.5 15 43
Electrical information CF98.02.03.INI 11) 3x0.25 5.0 11 29
Nominal voltage 300/300V CF98.02.04 11) 4x0.25 5.5 15 36
CF98.02.08 11) 8x0.25 7.5 30 67

Testing voltage 1,500V CF98.03.04.INI 11) 4x0.34 6.0 15 39
CF98.05.04 11) 4x0.5 6.0 33 53
Properties and approvals 11) Phase-out model (new generation CF98.PLUS Page 134)
UV resistance High Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core
Example image Oil resistance Oil-resistant (following DIN EN 60811-404), bio-oil-resistant (following VDMA Cables available in the chainflex CASE
®
24568 with Plantocut 8 S-MB tested by DEA), Class 4
Simple savings on delivery, storage space and re-ordering with
Silicone-free
Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
®
®
1992) ASEAN2023 ASEAN2023 the chainflex CASE - ship'n store by igus .
130 More on this on page 24/25 and online: www.igus-asean.com/cf-case 131
