Page 132 - ASEAN Chainflex Catalogue 2023

CF10.UL PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF10.UL
TPE Travel distance unsupported 1 2 3 4 5 6 ≥ 400m TPE
5 x d ® Oil resistance none 1 2 3 4 highest 5 x d

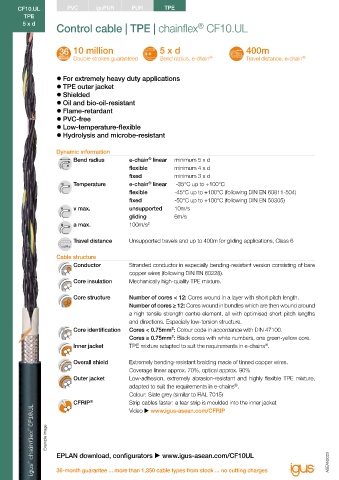

Control cable | TPE | chainflex CF10.UL Class 6.6.4.1 Torsion none 1 2 3 4 ±360°

10 million 5 x d 400m Electrical information 300/500V (following DIN VDE 0298-3)
Nominal voltage
Double strokes guaranteed Bend radius, e-chain ® Travel distance, e-chain ®
Cores < 0.5mm²: 300V (following UL)
Cores ≥ 0.5mm²: 1000V (following UL)
z For extremely heavy duty applications Testing voltage 2,000V (following DIN EN 50395)
z TPE outer jacket
z Shielded Properties and approvals
z Oil and bio-oil-resistant UV resistance High
z Flame-retardant
z PVC-free Oil resistance Oil-resistant (following DIN EN 60811-404), bio-oil-resistant (following VDMA
z Low-temperature-flexible 24568 with Plantocut 8 S-MB tested by DEA), Class 4
z Hydrolysis and microbe-resistant Flame-retardant According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2 / Horizontal Flame

Dynamic information Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
Bend radius e-chain linear minimum 5 x d 1992)
®
flexible minimum 4 x d UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
fixed minimum 3 x d service life calculator based on 2 billion test cycles per year"
Temperature e-chain linear -35°C up to +100°C UL/CSA AWM See data sheet for details  www.igus-asean.com/CF10UL
®
flexible -45°C up to +100°C (following DIN EN 60811-504)
fixed -50°C up to +100°C (following DIN EN 50305) NFPA Following NFPA 79-2018, chapter 12.9
v max. unsupported 10m/s
gliding 6m/s DNV Type Approval Certificate TAE00003X2
a max. 100m/s 2
EAC Certificate No. RU C-DE.ME77.B.00300/19
Travel distance Unsupported travels and up to 400m for gliding applications, Class 6
REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
Cable structure
Conductor Stranded conductor in especially bending-resistant version consisting of bare Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)
copper wires (following DIN EN 60228).
Core insulation Mechanically high-quality TPE mixture. Cleanroom According to ISO Class 1. The outer jacket material of this series complies with
CF34.UL.25.04.D - tested by IPA according to standard DIN EN ISO 14644-1
Core structure Number of cores < 12: Cores wound in a layer with short pitch length. CE Following 2014/35/EU
Number of cores ≥ 12: Cores wound in bundles which are then wound around
a high tensile strength centre element, all with optimised short pitch lengths UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)
and directions. Especially low-torsion structure.
Core identification Cores < 0.75mm²: Colour code in accordance with DIN 47100. Guaranteed service life (details see page 28-29)
Cores ≥ 0.75mm²: Black cores with white numbers, one green-yellow core. Double strokes* 5 million 7.5 million 10 million

®
Inner jacket TPE mixture adapted to suit the requirements in e-chains . Temperature, R min. R min. R min.
from/to [°C] [factor x d] [factor x d] [factor x d]
Overall shield Extremely bending-resistant braiding made of tinned copper wires. -35/-25 6.8 7.5 8.5
Coverage linear approx. 70%, optical approx. 90% -25/+90 5 6 7
Outer jacket Low-adhesion, extremely abrasion-resistant and highly flexible TPE mixture, +90/+100 6.8 7.5 8.5
adapted to suit the requirements in e-chains . * Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife
®
Colour: Slate grey (similar to RAL 7015)
CFRIP ® Strip cables faster: a tear strip is moulded into the inner jacket Typical application areas
Video  www.igus-asean.com/CFRIP z For heavy-duty applications, Class 6
z Unsupported travels and up to 400m and more for gliding applications, Class 6
Almost unlimited resistance to oil, also with bio-oils, Class 4
z
Example image z No torsion, Class 1
Indoor and outdoor applications, UV-resistant
z
EPLAN download, configurators  www.igus-asean.com/CF10UL z Storage and retrieval units for high-bay warehouses, machining units/machine tools, quick handling,
cleanroom, semiconductor insertion, ship to shore, outdoor cranes, low-temperature applications
126 36-month guarantee ... more than 1,350 cable types from stock ... no cutting charges ASEAN2023 ASEAN2023 UL-verified chainflex guarantee ... www.igus-asean.com/ul-verified 127
®
