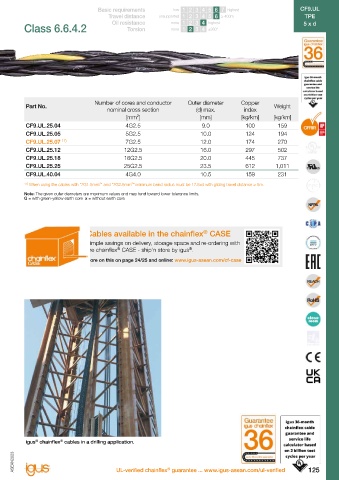

Page 131 - ASEAN Chainflex Catalogue 2023

CF9.UL PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF9.UL
TPE Travel distance unsupported 1 2 3 4 5 6 ≥ 400m TPE
5 x d ® Oil resistance none 1 2 3 4 highest 5 x d
Control cable | TPE | chainflex CF9.UL Class 6.6.4.2 Torsion none 1 2 3 4 ±360°

Strip cables 50% faster with CFRIP tear strip
®

Example image

Number of cores and conductor Outer diameter Copper Number of cores and conductor Outer diameter Copper
Part No. Weight Part No. Weight
nominal cross section (d) max. index nominal cross section (d) max. index
[mm²] [mm] [kg/km] [kg/km] [mm²] [mm] [kg/km] [kg/km]
CF9.UL.02.02 2x0.25 5.0 5 24 CF9.UL.25.04 4G2.5 9.0 100 159
CF9.UL.02.03.INI 3x0.25 5.0 8 28 CF9.UL.25.05 5G2.5 10.0 124 194
CF9.UL.02.04 4x0.25 5.5 10 32 CF9.UL.25.07 17) 7G2.5 12.0 174 270
CF9.UL.02.06 6x0.25 6.0 15 42 CF9.UL.25.12 12G2.5 16.0 297 502
CF9.UL.02.08 8x0.25 7.0 20 57 CF9.UL.25.18 18G2.5 20.0 445 737
CF9.UL.02.12 12x0.25 7.5 30 81 CF9.UL.25.25 25G2.5 23.5 612 1,011
CF9.UL.03.04.INI 4x0.34 5.5 14 38 CF9.UL.40.04 4G4.0 10.5 159 231
CF9.UL.03.05.INI 5x0.34 6.0 17 46 17) When using the cables with "7G1.5mm²" and "7G2.5mm²" minimum bend radius must be 17.5xd with gliding travel distance ≥ 5m.
CF9.UL.03.06 6x0.34 6.5 21 51
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
CF9.UL.03.08 8x0.34 7.5 28 67 G = with green-yellow earth core x = without earth core
CF9.UL.05.02 2x0.5 5.5 10 35
CF9.UL.05.03 3x0.5 6.0 15 42
CF9.UL.05.04 4x0.5 6.0 20 50
CF9.UL.05.05 5x0.5 6.5 25 56 Cables available in the chainflex CASE
®
CF9.UL.05.07 7x0.5 7.5 35 79
CF9.UL.05.12 12x0.5 9.5 60 137 Simple savings on delivery, storage space and re-ordering with
®
the chainflex CASE - ship'n store by igus .
®
CF9.UL.05.18 18x0.5 12.0 90 201
CF9.UL.07.05 5G0.75 7.0 38 77 More on this on page 24/25 and online: www.igus-asean.com/cf-case
CF9.UL.07.07 7G0.75 8.5 53 105
CF9.UL.07.12 12G0.75 11.0 90 191
CF9.UL.07.25 25G0.75 15.0 186 366
CF9.UL.10.03 3G1.0 6.5 30 62
CF9.UL.10.04 4G1.0 7.0 40 78
CF9.UL.10.12 12G1.0 11.5 119 228
CF9.UL.10.18 11) 18G1.0 14.5 178 332
CF9.UL.10.25 25G1.0 16.0 248 447
CF9.UL.15.04 4G1.5 8.0 60 102
CF9.UL.15.05 5G1.5 8.5 75 124
CF9.UL.15.07 17) 7G1.5 10.0 104 171
CF9.UL.15.12 12G1.5 13.5 178 309
CF9.UL.15.18 18G1.5 16.0 267 449
CF9.UL.15.25 25G1.5 19.0 371 650
11) Phase-out model
17) When using the cables with "7G1.5mm²" and "7G2.5mm²" minimum bend radius must be 17.5xd with gliding travel distance ≥ 5m.
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core

®
igus chainflex cables in a drilling application.
®
EPLAN download, configurators  www.igus-asean.com/CF9UL
