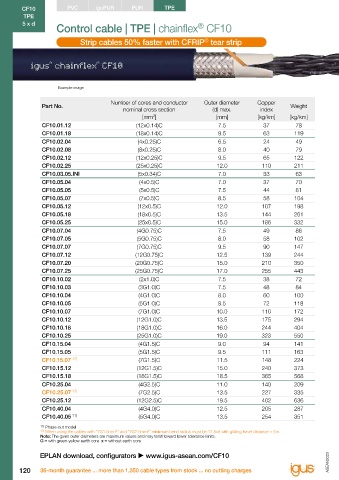

Page 126 - ASEAN Chainflex Catalogue 2023

CF10 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF10
TPE Travel distance unsupported 1 2 3 4 5 6 ≥ 400m TPE
5 x d ® Oil resistance none 1 2 3 4 highest 5 x d
Control cable | TPE | chainflex CF10 Class 7.6.4.1 Torsion none 1 2 3 4 ±360°

Strip cables 50% faster with CFRIP tear strip
®

Example image

Number of cores and conductor Outer diameter Copper Order example: CF10.01.12 - to your desired length (0.5m steps)
Part No. Weight
nominal cross section (d) max. index CF10 chainflex series .01 Code nominal cross section .12 Number of cores
®
[mm²] [mm] [kg/km] [kg/km]
CF10.01.12 (12x0.14)C 7.5 37 78 Order online  www.igus-asean.com/CF10
CF10.01.18 (18x0.14)C 9.5 63 119
CF10.02.04 (4x0.25)C 6.5 24 49 Delivery time 24hrs or today.
CF10.02.08 (8x0.25)C 8.0 40 79 Delivery time means time until goods are shipped.
CF10.02.12 (12x0.25)C 9.5 65 122
CF10.02.25 (25x0.25)C 12.0 110 211
CF10.03.05.INI (5x0.34)C 7.0 33 63
CF10.05.04 (4x0.5)C 7.0 37 70
CF10.05.05 (5x0.5)C 7.5 44 81
CF10.05.07 (7x0.5)C 8.5 58 104
CF10.05.12 (12x0.5)C 12.0 107 198
CF10.05.18 (18x0.5)C 13.5 144 261
CF10.05.25 (25x0.5)C 15.0 186 332
CF10.07.04 (4G0.75)C 7.5 49 86
CF10.07.05 (5G0.75)C 8.0 58 102
CF10.07.07 (7G0.75)C 9.5 90 147
CF10.07.12 (12G0.75)C 12.5 139 244
CF10.07.20 (20G0.75)C 15.0 210 350
CF10.07.25 (25G0.75)C 17.0 255 443
CF10.10.02 (2x1.0)C 7.5 38 72
CF10.10.03 (3G1.0)C 7.5 48 84
CF10.10.04 (4G1.0)C 8.0 60 100
CF10.10.05 (5G1.0)C 8.5 72 118
CF10.10.07 (7G1.0)C 10.0 110 172
CF10.10.12 (12G1.0)C 13.5 175 294 chainflex CF10 control cable in storage and retrieval units e-chain : E2 system
®
CF10.10.18 (18G1.0)C 16.0 244 404
CF10.10.25 (25G1.0)C 19.0 323 550
CF10.15.04 (4G1.5)C 9.0 94 141
CF10.15.05 (5G1.5)C 9.5 111 163 Cables available in the chainflex CASE
®
CF10.15.07 17) (7G1.5)C 11.5 148 224
CF10.15.12 (12G1.5)C 15.0 240 373 Simple savings on delivery, storage space and re-ordering with
®
®
the chainflex CASE - ship'n store by igus .
CF10.15.18 (18G1.5)C 18.5 365 568
CF10.25.04 (4G2.5)C 11.0 140 209 More on this on page 24/25 and online: www.igus-asean.com/cf-case
CF10.25.07 17) (7G2.5)C 13.5 227 335
CF10.25.12 (12G2.5)C 19.5 402 636
CF10.40.04 (4G4.0)C 12.5 205 287
CF10.40.05 11) (5G4.0)C 13.5 254 351

11) Phase-out model
17) When using the cables with "7G1.5mm²" and "7G2.5mm²" minimum bend radius must be 17.5xd with gliding travel distance ≥ 5m.
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core

EPLAN download, configurators  www.igus-asean.com/CF10
