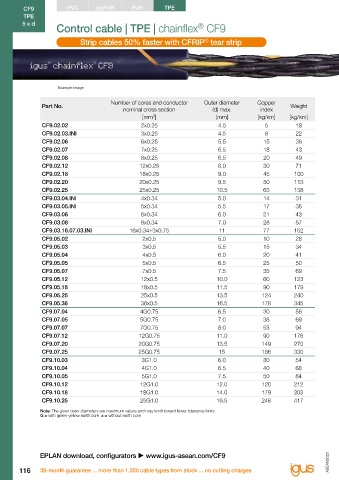

Page 122 - ASEAN Chainflex Catalogue 2023

CF9 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF9
TPE Travel distance unsupported 1 2 3 4 5 6 ≥ 400m TPE
5 x d ® Oil resistance none 1 2 3 4 highest 5 x d
Control cable | TPE | chainflex CF9 Class 7.6.4.2 Torsion none 1 2 3 4 ±360°

Strip cables 50% faster with CFRIP tear strip
®

Example image

Number of cores and conductor Outer diameter Copper Number of cores and conductor Outer diameter Copper
Part No. Weight Part No. Weight
nominal cross section (d) max. index nominal cross section (d) max. index
[mm²] [mm] [kg/km] [kg/km] [mm²] [mm] [kg/km] [kg/km]
CF9.02.02 2x0.25 4.5 5 18 CF9.15.02 2x1.5 6.5 30 55
CF9.02.03.INI 3x0.25 4.5 8 22 CF9.15.04 4G1.5 7.5 60 90
CF9.02.06 6x0.25 5.5 15 36 CF9.15.05 5G1.5 8.0 75 111
CF9.02.07 7x0.25 6.5 18 43 CF9.15.07 17) 7G1.5 9.5 104 159
CF9.02.08 8x0.25 6.5 20 49 CF9.15.12 12G1.5 13.0 178 280
CF9.02.12 12x0.25 8.0 30 71 CF9.15.18 18G1.5 16.0 267 412
CF9.02.18 18x0.25 9.0 45 100 CF9.15.25 25G1.5 19.0 371 585
CF9.02.20 20x0.25 9.5 50 113 CF9.15.36 36G1.5 22.5 534 816
CF9.02.25 25x0.25 10.5 63 138 CF9.25.04 4G2.5 9.0 100 144
CF9.03.04.INI 4x0.34 5.0 14 31 CF9.25.05 5G2.5 9.5 124 176
CF9.03.05.INI 5x0.34 5.5 17 36 CF9.25.07 17) 7G2.5 12.0 174 253
CF9.03.06 6x0.34 6.0 21 43 CF9.25.12 12G2.5 17.0 297 465
CF9.03.08 8x0.34 7.0 28 57 CF9.25.16 16G2.5 19.0 396 616
CF9.03.16.07.03.INI 16x0.34+3x0.75 11 77 152 CF9.25.18 7) 18G2.5 22.5 445 795
CF9.05.02 2x0.5 5.0 10 28 CF9.25.25 25G2.5 23.0 612 926
CF9.05.03 3x0.5 5.5 15 34 CF9.40.04 4G4.0 10.5 159 212
CF9.05.04 4x0.5 6.0 20 41 CF9.60.04 4G6.0 12.0 238 308
CF9.05.05 5x0.5 6.5 25 50 CF9.60.05 5G6.0 13.0 297 378
CF9.05.07 7x0.5 7.5 35 69 CF9.100.04 4G10 16.5 396 550
CF9.05.12 12x0.5 10.0 60 123 CF9.160.04 4G16 20.5 633 843
CF9.05.18 18x0.5 11.5 90 179 7) Nominal voltage 600/1000V
CF9.05.25 25x0.5 13.5 124 240 17) When using the cables with "7G1.5mm²" and "7G2.5mm²" minimum bend radius must be 17.5xd with gliding travel distance ≥ 5m.
CF9.05.36 36x0.5 16.5 178 345 Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
CF9.07.04 4G0.75 6.5 30 56 G = with green-yellow earth core x = without earth core
CF9.07.05 5G0.75 7.0 38 69
CF9.07.07 7G0.75 8.0 53 94
CF9.07.12 12G0.75 11.0 90 176
CF9.07.20 20G0.75 13.5 149 270
CF9.07.25 25G0.75 15 186 330
CF9.10.03 3G1.0 6.0 30 54
CF9.10.04 4G1.0 6.5 40 68
CF9.10.05 5G1.0 7.5 50 84
CF9.10.12 12G1.0 12.0 120 212
CF9.10.18 18G1.0 14.0 179 303
CF9.10.25 25G1.0 16.5 248 417
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core

®
®
chainflex CF9 INI cables in a high-performance system for plastics processing with cycle times in seconds. e-chain
EPLAN download, configurators  www.igus-asean.com/CF9 E6 series. (Source: Hekuma)
116 36-month guarantee ... more than 1,350 cable types from stock ... no cutting charges ASEAN2023 ASEAN2023 UL-verified chainflex guarantee ... www.igus-asean.com/ul-verified 117
®
