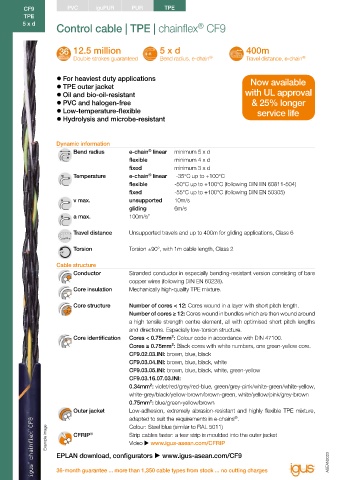

Page 120 - ASEAN Chainflex Catalogue 2023

CF9 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF9
TPE Travel distance unsupported 1 2 3 4 5 6 ≥ 400m TPE
5 x d ® Oil resistance none 1 2 3 4 highest 5 x d
Control cable | TPE | chainflex CF9 Class 7.6.4.2 Torsion none 1 2 3 4 ±360°

12.5 million 5 x d 400m Electrical information 300/500V (following DIN VDE 0298-3)
Nominal voltage
Double strokes guaranteed Bend radius, e-chain ® Travel distance, e-chain ®
Cores < 0.5mm²: 300V (following UL)
Cores ≥ 0.5mm²: 1000V (following UL)
z For heaviest duty applications Now available Testing voltage 2,000V (following DIN EN 50395)
z TPE outer jacket
z Oil and bio-oil-resistant with UL approval Properties and approvals
z PVC and halogen-free & 25% longer UV resistance High
z Low-temperature-flexible service life
z Hydrolysis and microbe-resistant Oil resistance Oil-resistant (following DIN EN 60811-404), bio-oil-resistant (following VDMA
24568 with Plantocut 8 S-MB tested by DEA), Class 4
Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
Dynamic information 1992)
®
Bend radius e-chain linear minimum 5 x d Halogen-free Following DIN EN 60754
flexible minimum 4 x d
fixed minimum 3 x d UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
Temperature e-chain linear -35°C up to +100°C service life calculator based on 2 billion test cycles per year"
®
flexible -50°C up to +100°C (following DIN EN 60811-504) UL AWM See data sheet for details  www.igus-asean.com/CF9
fixed -55°C up to +100°C (following DIN EN 50305) (from production date 01/2022)
v max. unsupported 10m/s EAC Certificate No. RU C-DE.ME77.B.00300/19
gliding 6m/s
a max. 100m/s 2 REACH In accordance with regulation (EC) No. 1907/2006 (REACH)

Travel distance Unsupported travels and up to 400m for gliding applications, Class 6 Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)

Torsion Torsion ±90°, with 1m cable length, Class 2 Cleanroom According to ISO Class 1, material/cable tested by IPA according to DIN EN
ISO standard 14644-1
Cable structure CE Following 2014/35/EU
Conductor Stranded conductor in especially bending-resistant version consisting of bare
copper wires (following DIN EN 60228). UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)
Core insulation Mechanically high-quality TPE mixture.

Core structure Number of cores < 12: Cores wound in a layer with short pitch length. Guaranteed service life (details see page 28-29)
Number of cores ≥ 12: Cores wound in bundles which are then wound around Double strokes* 5 million 7.5 million 12.5 million

a high tensile strength centre element, all with optimised short pitch lengths Temperature, R min. R min. R min.
and directions. Especially low-torsion structure. from/to [°C] [factor x d] [factor x d] [factor x d]
Core identification Cores < 0.75mm²: Colour code in accordance with DIN 47100. -35/-25 6.8 7.5 8.5
Cores ≥ 0.75mm²: Black cores with white numbers, one green-yellow core. -25/+90 5 6 7
CF9.02.03.INI: brown, blue, black +90/+100 6.8 7.5 8.5
CF9.03.04.INI: brown, blue, black, white * Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife
CF9.03.05.INI: brown, blue, black, white, green-yellow
CF9.03.16.07.03.INI: Typical application areas
0.34mm²: violet/red/grey/red-blue, green/grey-pink/white-green/white-yellow, z For heavy-duty applications, Class 7
white-grey/black/yellow-brown/brown-green, white/yellow/pink/grey-brown z Unsupported travels and up to 400m and more for gliding applications, Class 6
0.75mm²: blue/green-yellow/brown z Almost unlimited resistance to oil, also with bio-oils, Class 4
Outer jacket Low-adhesion, extremely abrasion-resistant and highly flexible TPE mixture, z Torsion ±90°, with 1m cable length, Class 2
adapted to suit the requirements in e-chains . z Indoor and outdoor applications, UV-resistant
®
Storage and retrieval units for high-bay warehouses, machining units/machine tools,
Colour: Steel blue (similar to RAL 5011)
Example image CFRIP ® Strip cables faster: a tear strip is moulded into the outer jacket quick handling, cleanroom, semiconductor insertion, outdoor cranes,
z
Video  www.igus-asean.com/CFRIP
low-temperature applications
EPLAN download, configurators  www.igus-asean.com/CF9

114 36-month guarantee ... more than 1,350 cable types from stock ... no cutting charges ASEAN2023 ASEAN2023 UL-verified chainflex guarantee ... www.igus-asean.com/ul-verified 115
®
