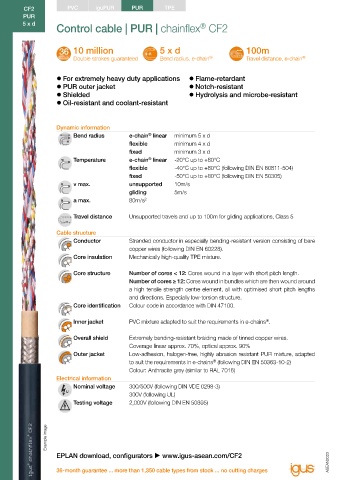

Page 116 - ASEAN Chainflex Catalogue 2023

CF2 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF2
PUR Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PUR
5 x d ® Oil resistance none 1 2 3 4 highest 5 x d
Control cable | PUR | chainflex CF2 Class 6.5.3.1 Torsion none 1 2 3 4 ±360°

10 million 5 x d 100m Properties and approvals High
UV resistance
Double strokes guaranteed Bend radius, e-chain ® Travel distance, e-chain ®

Oil resistance Oil-resistant (following DIN EN 50363-10-2), Class 3
z For extremely heavy duty applications z Flame-retardant
z PUR outer jacket z Notch-resistant Offshore MUD-resistant following NEK 606 - status 2016
z Shielded z Hydrolysis and microbe-resistant
z Oil-resistant and coolant-resistant Flame-retardant According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2 / Horizontal Flame

Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
Dynamic information 1992)
Bend radius e-chain linear minimum 5 x d UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
®
flexible minimum 4 x d service life calculator based on 2 billion test cycles per year"
fixed minimum 3 x d UL/CSA AWM See data sheet for details  www.igus-asean.com/CF2
®
Temperature e-chain linear -20°C up to +80°C
flexible -40°C up to +80°C (following DIN EN 60811-504) NFPA Following NFPA 79-2018, chapter 12.9
fixed -50°C up to +80°C (following DIN EN 50305)
v max. unsupported 10m/s EAC Certificate No. RU C-DE.ME77.B.00300/19
gliding 5m/s
a max. 80m/s 2 REACH In accordance with regulation (EC) No. 1907/2006 (REACH)

Travel distance Unsupported travels and up to 100m for gliding applications, Class 5 Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)

Cable structure Cleanroom According to ISO Class 1. The outer jacket material of this series complies with
Conductor Stranded conductor in especially bending-resistant version consisting of bare CF77.UL.05.12.D - tested by IPA according to standard DIN EN ISO 14644-1
copper wires (following DIN EN 60228). CE Following 2014/35/EU
Core insulation Mechanically high-quality TPE mixture.
UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)
Core structure Number of cores < 12: Cores wound in a layer with short pitch length.
Number of cores ≥ 12: Cores wound in bundles which are then wound around
a high tensile strength centre element, all with optimised short pitch lengths Guaranteed service life (details see page 28-29)
and directions. Especially low-torsion structure. Double strokes* 5 million 7.5 million 10 million

Core identification Colour code in accordance with DIN 47100. Temperature, R min. R min. R min.
from/to [°C] [factor x d] [factor x d] [factor x d]
®
Inner jacket PVC mixture adapted to suit the requirements in e-chains . -20/-10 6.8 7.5 8.5
-10/+70 5 6.8 7.5
Overall shield Extremely bending-resistant braiding made of tinned copper wires. +70/+80 6.8 7.5 8.5
Coverage linear approx. 70%, optical approx. 90% * Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife
Outer jacket Low-adhesion, halogen-free, highly abrasion resistant PUR mixture, adapted
®
to suit the requirements in e-chains (following DIN EN 50363-10-2) Typical application areas
Colour: Anthracite grey (similar to RAL 7016) z For heavy-duty applications, Class 6
Electrical information z Unsupported travels and up to 100m for gliding applications, Class 5
Nominal voltage 300/500V (following DIN VDE 0298-3) z Almost unlimited resistance to oil, Class 3
300V (following UL) z No torsion, Class 1
Testing voltage 2,000V (following DIN EN 50395) z Indoor and outdoor applications
z Storage and retrieval units, machining units/packaging machines,
quick handling, indoor cranes, refrigeration sector
Example image

EPLAN download, configurators  www.igus-asean.com/CF2

110 36-month guarantee ... more than 1,350 cable types from stock ... no cutting charges ASEAN2023 ASEAN2023 UL-verified chainflex guarantee ... www.igus-asean.com/ul-verified 111
®
