CF2 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF2
PUR Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PUR
5 x d ® Oil resistance none 1 2 3 4 highest 5 x d
Control cable | PUR | chainflex CF2 Class 6.5.3.1 Torsion none 1 2 3 4 ±360°

Example image

Number of cores and conductor Outer diameter Copper
Part No. Weight
nominal cross section (d) max. index
[mm²] [mm] [kg/km] [kg/km]
CF2.01.04 (4x0.14)C 6.5 18 49
CF2.01.08 (8x0.14)C 7.5 31 66
CF2.01.12 (12x0.14)C 9.5 51 102
CF2.01.18 (18x0.14)C 10.5 56 135
CF2.01.24 3) (24x0.14)C 11.5 68 162
CF2.01.36 (36x0.14)C 14.5 92 240
CF2.02.04 (4x0.25)C 7.0 25 59
CF2.02.08 (8x0.25)C 8.0 43 84
CF2.02.18 (18x0.25)C 12.0 100 173
CF2.02.48 (48x0.25)C 17.5 191 387
3)
The chainflex types marked with a refer to cables that are based on a bundling of 4 cores each. Due to their excellent electrical properties
®
(starquad with especially minimum crosstalk), these cables can virtually be used in all cases in which otherwise twisted-pair cables are required.
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core

Order example: CF2.01.04 - to your desired length (0.5m steps)
®
®

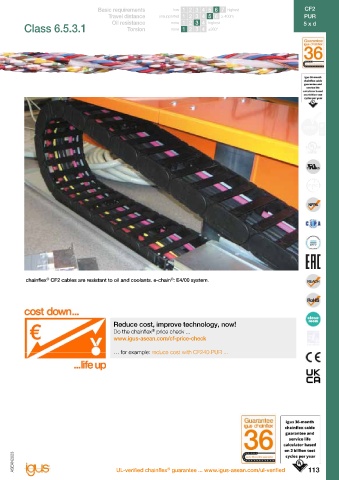

CF2 chainflex series .01 Code nominal cross section .04 Number of cores chainflex CF2 cables are resistant to oil and coolants. e-chain : E4/00 system.
®
Order online  www.igus-asean.com/CF2

Delivery time 24hrs or today.
Delivery time means time until goods are shipped. Reduce cost, improve technology, now!
®
Do the chainflex price check ...
www.igus-asean.com/cf-price-check
… for example: reduce cost with CF240.PUR ...
®
Cables available in the chainflex CASE
Simple savings on delivery, storage space and re-ordering with
the chainflex CASE - ship'n store by igus .
®
®
More on this on page 24/25 and online: www.igus-asean.com/cf-case

EPLAN download, configurators  www.igus-asean.com/CF2

112 36-month guarantee ... more than 1,350 cable types from stock ... no cutting charges ASEAN2023 ASEAN2023 UL-verified chainflex guarantee ... www.igus-asean.com/ul-verified 113
®
