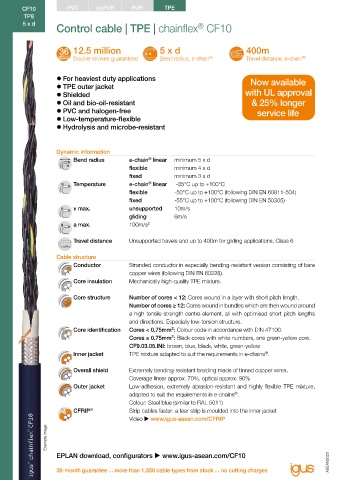

Page 124 - ASEAN Chainflex Catalogue 2023

CF10 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF10
TPE Travel distance unsupported 1 2 3 4 5 6 ≥ 400m TPE
5 x d ® Oil resistance none 1 2 3 4 highest 5 x d
Control cable | TPE | chainflex CF10 Class 7.6.4.1 Torsion none 1 2 3 4 ±360°

12.5 million 5 x d 400m Electrical information 300/500V (following DIN VDE 0298-3)
Nominal voltage
Double strokes guaranteed Bend radius, e-chain ® Travel distance, e-chain ®
Cores < 0.5mm²: 300V (following UL)
Cores ≥ 0.5mm²: 1000V (following UL)
z For heaviest duty applications Now available Testing voltage 2,000V (following DIN EN 50395)
z TPE outer jacket
z Shielded with UL approval Properties and approvals
z Oil and bio-oil-resistant & 25% longer UV resistance High
z PVC and halogen-free service life
z Low-temperature-flexible Oil resistance Oil-resistant (following DIN EN 60811-404), bio-oil-resistant (following VDMA
z Hydrolysis and microbe-resistant 24568 with Plantocut 8 S-MB tested by DEA), Class 4
Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
1992)
Dynamic information Halogen-free Following DIN EN 60754
®
Bend radius e-chain linear minimum 5 x d
flexible minimum 4 x d UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
fixed minimum 3 x d service life calculator based on 2 billion test cycles per year"
Temperature e-chain linear -35°C up to +100°C UL AWM See data sheet for details  www.igus-asean.com/CF10
®
flexible -50°C up to +100°C (following DIN EN 60811-504) (from production date 01/2022)
fixed -55°C up to +100°C (following DIN EN 50305) EAC Certificate No. RU C-DE.ME77.B.00300/19
v max. unsupported 10m/s
gliding 6m/s REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
a max. 100m/s 2
Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)
Travel distance Unsupported travels and up to 400m for gliding applications, Class 6
Cleanroom According to ISO Class 1. The outer jacket material of this series complies with
Cable structure CF9.15.07 - tested by IPA according to standard DIN EN ISO 14644-1
Conductor Stranded conductor in especially bending-resistant version consisting of bare CE Following 2014/35/EU
copper wires (following DIN EN 60228).
Core insulation Mechanically high-quality TPE mixture. UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)

Core structure Number of cores < 12: Cores wound in a layer with short pitch length.
Number of cores ≥ 12: Cores wound in bundles which are then wound around Guaranteed service life (details see page 28-29)
a high tensile strength centre element, all with optimised short pitch lengths Double strokes* 5 million 7.5 million 12.5 million

and directions. Especially low-torsion structure. Temperature, R min. R min. R min.
Core identification Cores < 0.75mm²: Colour code in accordance with DIN 47100. from/to [°C] [factor x d] [factor x d] [factor x d]
Cores ≥ 0.75mm²: Black cores with white numbers, one green-yellow core. -35/-25 6.8 7.5 8.5
CF9.03.05.INI: brown, blue, black, white, green-yellow -25/+90 5 6 7
®
Inner jacket TPE mixture adapted to suit the requirements in e-chains . +90/+100 6.8 7.5 8.5
* Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife
Overall shield Extremely bending-resistant braiding made of tinned copper wires.
Coverage linear approx. 70%, optical approx. 90% Typical application areas
Outer jacket Low-adhesion, extremely abrasion-resistant and highly flexible TPE mixture, z For heavy-duty applications, Class 7
adapted to suit the requirements in e-chains . z Unsupported travels and up to 400m and more for gliding applications, Class 6
®
Colour: Steel blue (similar to RAL 5011) z Almost unlimited resistance to oil, also with bio-oils, Class 4
CFRIP ® Strip cables faster: a tear strip is moulded into the inner jacket z No torsion, Class 1
Video  www.igus-asean.com/CFRIP z Indoor and outdoor applications, UV-resistant
Storage and retrieval units for high-bay warehouses, machining units/machine tools,
Example image quick handling, cleanroom, semiconductor insertion, ship to shore, outdoor cranes,
z
low-temperature applications

EPLAN download, configurators  www.igus-asean.com/CF10

118 36-month guarantee ... more than 1,350 cable types from stock ... no cutting charges ASEAN2023 ASEAN2023 UL-verified chainflex guarantee ... www.igus-asean.com/ul-verified 119
®
