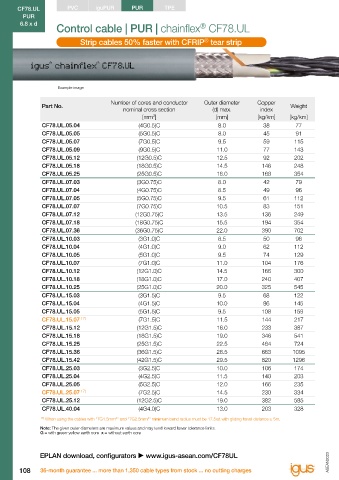

CF78.UL PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF78.UL
PUR Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PUR
6.8 x d ® Oil resistance none 1 2 3 4 highest 6.8 x d
Control cable | PUR | chainflex CF78.UL Class 5.5.3.1 Torsion none 1 2 3 4 ±360°

®
Strip cables 50% faster with CFRIP tear strip

Example image

Number of cores and conductor Outer diameter Copper Order example: CF78.UL.05.04 - to your desired length (0.5m steps)
Part No. Weight
nominal cross section (d) max. index CF78.UL chainflex series .05 Code nominal cross section .04 Number of cores
®
[mm²] [mm] [kg/km] [kg/km]
CF78.UL.05.04 (4G0.5)C 8.0 38 77 Order online  www.igus-asean.com/CF78UL
CF78.UL.05.05 (5G0.5)C 8.0 45 91
CF78.UL.05.07 (7G0.5)C 9.5 59 115 Delivery time 24hrs or today.
CF78.UL.05.09 (9G0.5)C 11.0 77 143 Delivery time means time until goods are shipped.
CF78.UL.05.12 (12G0.5)C 12.5 92 202
CF78.UL.05.18 (18G0.5)C 14.5 146 248
CF78.UL.05.25 (25G0.5)C 16.0 168 354
CF78.UL.07.03 (3G0.75)C 8.0 42 79 Cables available in the chainflex CASE
®
CF78.UL.07.04 (4G0.75)C 8.5 49 96
CF78.UL.07.05 (5G0.75)C 9.5 61 112 Simple savings on delivery, storage space and re-ordering with
®
the chainflex CASE - ship'n store by igus .
®
CF78.UL.07.07 (7G0.75)C 10.5 83 151
CF78.UL.07.12 (12G0.75)C 13.5 136 249 More on this on page 24/25 and online: www.igus-asean.com/cf-case
CF78.UL.07.18 (18G0.75)C 15.5 194 354
CF78.UL.07.36 (36G0.75)C 22.0 390 702
CF78.UL.10.03 (3G1.0)C 8.5 50 96
CF78.UL.10.04 (4G1.0)C 9.0 62 112
CF78.UL.10.05 (5G1.0)C 9.5 74 129
CF78.UL.10.07 (7G1.0)C 11.0 104 176
CF78.UL.10.12 (12G1.0)C 14.5 166 300
CF78.UL.10.18 (18G1.0)C 17.0 240 407 Reduce cost, improve technology, now!
®
CF78.UL.10.25 (25G1.0)C 20.0 325 545 Do the chainflex price check ...
www.igus-asean.com/cf-price-check
CF78.UL.15.03 (3G1.5)C 9.5 68 122
CF78.UL.15.04 (4G1.5)C 10.0 86 145 … for example: reduce cost with CF6 ...
CF78.UL.15.05 (5G1.5)C 9.5 108 159
CF78.UL.15.07 17) (7G1.5)C 11.5 144 217
CF78.UL.15.12 (12G1.5)C 16.0 233 387
CF78.UL.15.18 (18G1.5)C 19.0 346 541
CF78.UL.15.25 (25G1.5)C 22.5 464 724
CF78.UL.15.36 (36G1.5)C 26.5 663 1095
CF78.UL.15.42 (42G1.5)C 29.5 820 1296
CF78.UL.25.03 (3G2.5)C 10.0 106 174
CF78.UL.25.04 (4G2.5)C 11.5 140 203
CF78.UL.25.05 (5G2.5)C 12.0 166 235
CF78.UL.25.07 17) (7G2.5)C 14.5 230 334
CF78.UL.25.12 (12G2.5)C 19.0 382 585
CF78.UL.40.04 (4G4.0)C 13.0 203 328
17) When using the cables with "7G1.5mm²" and "7G2.5mm²" minimum bend radius must be 17.5xd with gliding travel distance ≥ 5m.
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core

EPLAN download, configurators  www.igus-asean.com/CF78UL
