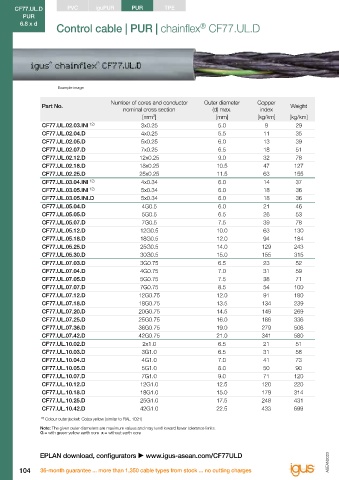

CF77.UL.D PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF77.UL.D
PUR Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PUR
6.8 x d ® Oil resistance none 1 2 3 4 highest 6.8 x d
Control cable | PUR | chainflex CF77.UL.D Class 5.5.2.1 Torsion none 1 2 3 4 ±360°

Example image

Number of cores and conductor Outer diameter Copper Number of cores and conductor Outer diameter Copper
Part No. Weight Part No. Weight
nominal cross section (d) max. index nominal cross section (d) max. index
[mm²] [mm] [kg/km] [kg/km] [mm²] [mm] [kg/km] [kg/km]
CF77.UL.02.03.INI 12) 3x0.25 5.0 9 29 CF77.UL.15.03.D 3G1.5 7.0 46 71
CF77.UL.02.04.D 4x0.25 5.5 11 35 CF77.UL.15.04.D 4G1.5 7.5 61 88
CF77.UL.02.05.D 5x0.25 6.0 13 39 CF77.UL.15.05.D 5G1.5 8.0 75 105
CF77.UL.02.07.D 7x0.25 6.5 18 51 CF77.UL.15.07.D 17) 7G1.5 9.5 105 152
CF77.UL.02.12.D 12x0.25 9.0 32 78 CF77.UL.15.12.D 12G1.5 13.0 179 297
CF77.UL.02.18.D 18x0.25 10.5 47 127 CF77.UL.15.18.D 18G1.5 17.0 268 405
CF77.UL.02.25.D 25x0.25 11.5 63 155 CF77.UL.15.25.D 25G1.5 19.5 297 564
CF77.UL.03.04.INI 12) 4x0.34 6.0 14 37 CF77.UL.15.36.D 36G1.5 23.5 551 848
CF77.UL.03.05.INI 12) 5x0.34 6.0 18 36 CF77.UL.25.03.D 3G2.5 8.5 75 132
CF77.UL.03.05.INI.D 5x0.34 6.0 18 36 CF77.UL.25.04.D 4G2.5 9.5 95 167
CF77.UL.05.04.D 4G0.5 6.0 21 46 CF77.UL.25.05.D 5G2.5 10.0 124 196
CF77.UL.05.05.D 5G0.5 6.5 26 53 CF77.UL.25.07.D 17) 7G2.5 12.0 174 270
CF77.UL.05.07.D 7G0.5 7.5 39 78 CF77.UL.25.12.D 12G2.5 17.0 297 479
CF77.UL.05.12.D 12G0.5 10.0 63 130 CF77.UL.40.04.D 90) 4G4.0 11.5 165 245
CF77.UL.05.18.D 18G0.5 12.0 94 184 CF77.UL.40.05.D 90) 5G4.0 12.0 198 284
CF77.UL.05.25.D 25G0.5 14.0 129 243 CF77.UL.60.05.D 90) 5G6.0 13.5 297 412
CF77.UL.05.30.D 30G0.5 15.0 155 315 17) When using the cables with "7G1.5mm²" and "7G2.5mm²" minimum bend radius must be 17.5xd with gliding travel distance ≥ 5m.
CF77.UL.07.03.D 3G0.75 6.5 23 52 90) Torsion ± 90°
CF77.UL.07.04.D 4G0.75 7.0 31 59 Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
CF77.UL.07.05.D 5G0.75 7.5 38 71 G = with green-yellow earth core x = without earth core
CF77.UL.07.07.D 7G0.75 8.5 54 100
CF77.UL.07.12.D 12G0.75 12.0 91 180
CF77.UL.07.18.D 18G0.75 13.5 134 239
CF77.UL.07.20.D 20G0.75 14.5 149 269
CF77.UL.07.25.D 25G0.75 16.0 186 336
CF77.UL.07.36.D 36G0.75 19.0 279 506 Cables available in the chainflex CASE
®
CF77.UL.07.42.D 42G0.75 21.0 341 580
CF77.UL.10.02.D 2x1.0 6.5 21 51 Simple savings on delivery, storage space and re-ordering with
®
®
the chainflex CASE - ship'n store by igus .
CF77.UL.10.03.D 3G1.0 6.5 31 58
CF77.UL.10.04.D 4G1.0 7.0 41 73 More on this on page 24/25 and online: www.igus-asean.com/cf-case
CF77.UL.10.05.D 5G1.0 8.0 50 90
CF77.UL.10.07.D 7G1.0 9.0 71 120
CF77.UL.10.12.D 12G1.0 12.5 120 220
CF77.UL.10.18.D 18G1.0 15.0 179 314
CF77.UL.10.25.D 25G1.0 17.5 248 431
CF77.UL.10.42.D 42G1.0 22.5 433 699
12) Colour outer jacket: Colza yellow (similar to RAL 1021)
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core

EPLAN download, configurators  www.igus-asean.com/CF77ULD
