CF891 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF891
iguPUR Travel distance unsupported 1 2 3 4 5 6 ≥ 400m iguPUR
12.5 x d ® Oil resistance none 1 2 3 4 highest 12.5 x d

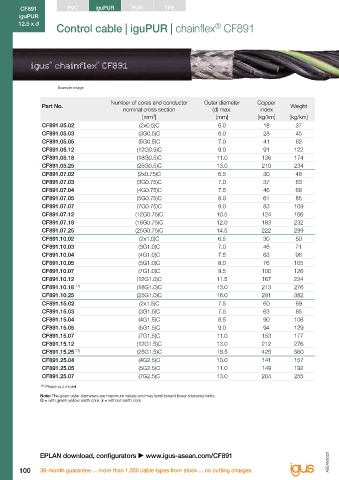

Control cable | iguPUR | chainflex CF891 Class 3.1.3.1 Torsion none 1 2 3 4 ±360°
Example image
Number of cores and conductor Outer diameter Copper Order example: CF891.05.02 - to your desired length (0.5m steps)
Part No. Weight
nominal cross section (d) max. index CF891 chainflex series .05 Code nominal cross section .02 Number of cores
®
[mm²] [mm] [kg/km] [kg/km]
CF891.05.02 (2x0.5)C 6.0 18 37 Order online www.igus-asean.com/CF891
CF891.05.03 (3G0.5)C 6.0 28 45
CF891.05.05 (5G0.5)C 7.0 41 62 Delivery time 24hrs or today.
CF891.05.12 (12G0.5)C 9.0 91 122 Delivery time means time until goods are shipped.
CF891.05.18 (18G0.5)C 11.0 136 174
CF891.05.25 (25G0.5)C 13.0 210 234
CF891.07.02 (2x0.75)C 6.5 30 48
CF891.07.03 (3G0.75)C 7.0 37 63 Cables available in the chainflex CASE
®
CF891.07.04 (4G0.75)C 7.5 46 68
CF891.07.05 (5G0.75)C 8.0 61 85 Simple savings on delivery, storage space and re-ordering with
®
®
the chainflex CASE - ship'n store by igus .
CF891.07.07 (7G0.75)C 9.0 83 109
CF891.07.12 (12G0.75)C 10.5 124 166 More on this on page 24/25 and online: www.igus-asean.com/cf-case
CF891.07.18 (18G0.75)C 12.0 183 232
CF891.07.25 (25G0.75)C 14.5 222 299
CF891.10.02 (2x1.0)C 6.5 30 50
CF891.10.03 (3G1.0)C 7.0 46 71
CF891.10.04 (4G1.0)C 7.5 63 98
CF891.10.05 (5G1.0)C 8.0 76 105
CF891.10.07 (7G1.0)C 9.5 100 126
CF891.10.12 (12G1.0)C 11.5 167 224
CF891.10.18 11) (18G1.0)C 13.0 213 276
CF891.10.25 (25G1.0)C 16.0 291 382
CF891.15.02 (2x1.5)C 7.5 60 69
CF891.15.03 (3G1.5)C 7.5 63 85
CF891.15.04 (4G1.5)C 8.5 90 108
CF891.15.05 (5G1.5)C 9.0 94 129
CF891.15.07 (7G1.5)C 11.0 153 177
CF891.15.12 (12G1.5)C 13.0 212 276
CF891.15.25 11) (25G1.5)C 18.5 425 560
CF891.25.04 (4G2.5)C 10.0 141 157
CF891.25.05 (5G2.5)C 11.0 149 192
CF891.25.07 (7G2.5)C 13.0 204 255
11) Phase-out model
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core
chainflex CF891 in an adjustment device for a process crane
®
EPLAN download, configurators www.igus-asean.com/CF891
