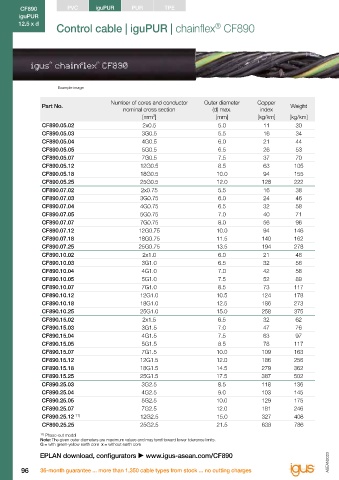

Page 102 - ASEAN Chainflex Catalogue 2023

CF890 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF890
iguPUR Travel distance unsupported 1 2 3 4 5 6 ≥ 400m iguPUR
12.5 x d ® Oil resistance none 1 2 3 4 highest 12.5 x d
Control cable | iguPUR | chainflex CF890 Class 3.1.3.1 Torsion none 1 2 3 4 ±360°

Example image

Number of cores and conductor Outer diameter Copper Order example: CF890.05.02 - to your desired length (0.5m steps)
Part No. Weight
nominal cross section (d) max. index CF890 chainflex series .05 Code nominal cross section .02 Number of cores
®
[mm²] [mm] [kg/km] [kg/km]
CF890.05.02 2x0.5 5.0 11 30 Order online  www.igus-asean.com/CF890
CF890.05.03 3G0.5 5.5 16 34
CF890.05.04 4G0.5 6.0 21 44 Delivery time 24hrs or today.
CF890.05.05 5G0.5 6.5 26 53 Delivery time means time until goods are shipped.
CF890.05.07 7G0.5 7.5 37 70
CF890.05.12 12G0.5 8.5 63 105
CF890.05.18 18G0.5 10.0 94 155
CF890.05.25 25G0.5 12.0 128 222 Cables available in the chainflex CASE
®
CF890.07.02 2x0.75 5.5 16 38 Simple savings on delivery, storage space and re-ordering with
CF890.07.03 3G0.75 6.0 24 46 the chainflex CASE - ship'n store by igus .
®
®
CF890.07.04 4G0.75 6.5 32 58
CF890.07.05 5G0.75 7.0 40 71 More on this on page 24/25 and online: www.igus-asean.com/cf-case
CF890.07.07 7G0.75 8.0 56 96
CF890.07.12 12G0.75 10.0 94 146
CF890.07.18 18G0.75 11.5 140 162
CF890.07.25 25G0.75 13.5 194 278
CF890.10.02 2x1.0 6.0 21 46
CF890.10.03 3G1.0 6.5 32 56
CF890.10.04 4G1.0 7.0 42 58
CF890.10.05 5G1.0 7.5 52 89
CF890.10.07 7G1.0 8.5 73 117
CF890.10.12 12G1.0 10.5 124 178
CF890.10.18 18G1.0 12.5 186 273
CF890.10.25 25G1.0 15.0 258 375
CF890.15.02 2x1.5 6.5 32 62
CF890.15.03 3G1.5 7.0 47 76
CF890.15.04 4G1.5 7.5 63 97
CF890.15.05 5G1.5 8.5 78 117
CF890.15.07 7G1.5 10.0 109 163
CF890.15.12 12G1.5 12.0 186 256
CF890.15.18 18G1.5 14.5 279 362
CF890.15.25 25G1.5 17.5 387 502
CF890.25.03 3G2.5 8.5 118 136
CF890.25.04 4G2.5 9.0 103 145
CF890.25.05 5G2.5 10.0 129 175
CF890.25.07 7G2.5 12.0 181 246
CF890.25.12 11) 12G2.5 15.0 327 408
CF890.25.25 25G2.5 21.5 638 786

11) Phase-out model
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core
EPLAN download, configurators  www.igus-asean.com/CF890
