CFSOFT1           PVC       iguPUR      PUR         TPE                                                                                            Basic requirements         low 1 2 3 4 5 6 7 highest                   CFSOFT1
         PVC                                                                                                                                                  Travel distance   unsupported 1 2 3 4 5 6 ≥ 400m                     PVC
         5 x d                                                         ®                                                                                       Oil resistance       none 1 2 3 4 highest                           5 x d

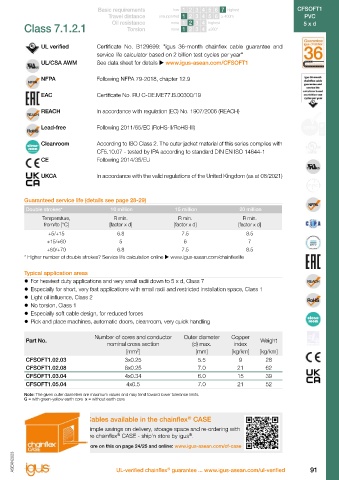

                     Control cable | PVC | chainflex  CFSOFT1                                                                    Class 7.1.2.1                       Torsion        none 1 2 3 4 ±360°



                           20 million                    5 x d                         5m                                              UL verified        Certificate No. B129699: "igus 36-month chainflex cable guarantee and
                                                                                                                                                          service life calculator based on 2 billion test cycles per year"
                           Double strokes guaranteed     Bend radius, e-chain ®        Travel distance, e-chain ®
                                                                                                                                       UL/CSA AWM         See data sheet for details  www.igus-asean.com/CFSOFT1

                     z  For heaviest duty applications and         z  Oil-resistant                                                    NFPA               Following NFPA 79-2018, chapter 12.9
                       very small radii down to 5 x d              z  Flame-retardant
                     z  Highly flexible, soft design                                                                                   EAC                Certificate No. RU C-DE.ME77.B.00300/19
                     z  PVC outer jacket
                                                                                                                                       REACH              In accordance with regulation (EC) No. 1907/2006 (REACH)

                     Dynamic information                                                                                               Lead-free          Following 2011/65/EC (RoHS-II/RoHS-III)
                           Bend radius        e-chain  linear   minimum 5 x d
                                                     ®
                                              flexible        minimum 4 x d                                                            Cleanroom          According to ISO Class 2. The outer jacket material of this series complies with
                                              fixed           minimum 3 x d                                                                               CF5.10.07 - tested by IPA according to standard DIN EN ISO 14644-1
                           Temperature        e-chain  linear    +5°C up to +70°C                                                      CE                 Following 2014/35/EU
                                                     ®
                                              flexible        -5°C up to +70°C (following DIN EN 60811-504)
                                              fixed           -15°C up to +70°C (following DIN EN 50305)                               UKCA               In accordance with the valid regulations of the United Kingdom (as at 08/2021)
                           v max.             unsupported     10m/s
                                              gliding         5m/s
                           a max.             80m/s²                                                                             Guaranteed service life (details see page 28-29)

                                                                                                                                 Double strokes*               10 million             15 million            20 million
                           Travel distance    Short, very fast applications with small radii and restricted installation space,        Temperature,             R min.                 R min.                R min.
                                              Class 1                                                                                  from/to [°C]            [factor x d]          [factor x d]           [factor x d]
                     Cable structure                                                                                                     +5/+15                  6.8                    7.5                    8.5
                           Conductor          Very finely stranded special conductors with especially soft and bending                   +15/+60                  5                      6                     7
                                              resistant design, made of bare copper wires.                                               +60/+70                 6.8                    7.5                    8.5
                           Core insulation    Mechanically high-quality TPE mixture.                                             * Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife

                           Core structure     Cores wound in a layer with especially short pitch length.                         Typical application areas
                                                                                                                                 z  For heaviest duty applications and very small radii down to 5 x d, Class 7
                           Core identification  Colour code in accordance with DIN 47100.                                        z  Especially for short, very fast applications with small radii and restricted installation space, Class 1
                                                                                                                                 z  Light oil influence, Class 2
                           Outer jacket       Low-adhesion, oil-resistant PVC mixture, adapted to suit the requirements in       z  No torsion, Class 1
                                              e-chains  (following DIN EN 50363-4-1).                                            z  Especially soft cable design, for reduced forces
                                                      ®
                                              Colour: jet black (similar to RAL 9005)                                            z  Pick and place machines, automatic doors, cleanroom, very quick handling
                     Electrical information

                           Nominal voltage    300/500V (following DIN VDE 0298-3)                                                Part No.                Number of cores and conductor   Outer diameter   Copper    Weight
                                              300V (following UL)                                                                                             nominal cross section         (d) max.      index
                           Testing voltage    2,000V (following DIN EN 50395)                                                                                       [mm²]                    [mm]        [kg/km]   [kg/km]
                                                                                                                                 CFSOFT1.02.03                      3x0.25                    5.5           9        28
                     Properties and approvals                                                                                    CFSOFT1.02.08                      8x0.25                    7.0          21        62
                           UV resistance      Medium                                                                             CFSOFT1.03.04                      4x0.34                    6.0          15        39
                                                                                                                                 CFSOFT1.05.04                      4x0.5                     7.0          21        52

                           Oil resistance     Oil-resistant (following DIN EN 50363-4-1), Class 2                                Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
                                                                                                                                 G = with green-yellow earth core  x = without earth core
                           Flame-retardant    According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2 / Horizontal Flame
                                                                                                                                                                                          ®
                                                                                                                                                      Cables available in the chainflex  CASE
                                              Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
                 Example image                1992)                                                                                                   More on this on page 24/25 and online: www.igus-asean.com/cf-case
                           Silicone-free
                                                                                                                                                      Simple savings on delivery, storage space and re-ordering with
                                                                                                                                                                 ®
                                                                                                                                                                                          ®
                                                                                                                                                      the chainflex  CASE - ship'n store by igus .
                     EPLAN download, configurators  www.igus-asean.com/CFSOFT1
