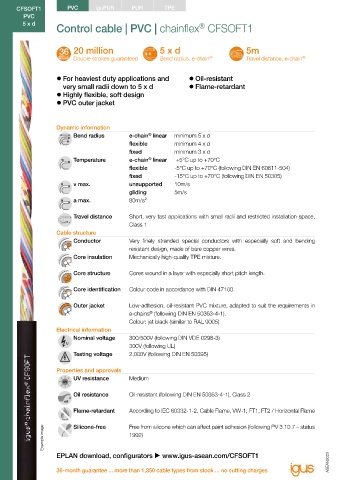

Control cable | PVC | chainflex CFSOFT1 Class 7.1.2.1 Torsion none 1 2 3 4 ±360°

20 million 5 x d 5m UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
service life calculator based on 2 billion test cycles per year"
Double strokes guaranteed Bend radius, e-chain ® Travel distance, e-chain ®
UL/CSA AWM See data sheet for details  www.igus-asean.com/CFSOFT1

z For heaviest duty applications and z Oil-resistant NFPA Following NFPA 79-2018, chapter 12.9
very small radii down to 5 x d z Flame-retardant
z Highly flexible, soft design EAC Certificate No. RU C-DE.ME77.B.00300/19
z PVC outer jacket
REACH In accordance with regulation (EC) No. 1907/2006 (REACH)

Dynamic information Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)
Bend radius e-chain linear minimum 5 x d
®
flexible minimum 4 x d Cleanroom According to ISO Class 2. The outer jacket material of this series complies with
fixed minimum 3 x d CF5.10.07 - tested by IPA according to standard DIN EN ISO 14644-1
Temperature e-chain linear +5°C up to +70°C CE Following 2014/35/EU
®
flexible -5°C up to +70°C (following DIN EN 60811-504)
fixed -15°C up to +70°C (following DIN EN 50305) UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)
v max. unsupported 10m/s
gliding 5m/s
a max. 80m/s² Guaranteed service life (details see page 28-29)

Double strokes* 10 million 15 million 20 million
Travel distance Short, very fast applications with small radii and restricted installation space, Temperature, R min. R min. R min.
Class 1 from/to [°C] [factor x d] [factor x d] [factor x d]
Cable structure +5/+15 6.8 7.5 8.5
Conductor Very finely stranded special conductors with especially soft and bending +15/+60 5 6 7
resistant design, made of bare copper wires. +60/+70 6.8 7.5 8.5
Core insulation Mechanically high-quality TPE mixture. * Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife

Core structure Cores wound in a layer with especially short pitch length. Typical application areas
z For heaviest duty applications and very small radii down to 5 x d, Class 7
Core identification Colour code in accordance with DIN 47100. z Especially for short, very fast applications with small radii and restricted installation space, Class 1
z Light oil influence, Class 2
Outer jacket Low-adhesion, oil-resistant PVC mixture, adapted to suit the requirements in z No torsion, Class 1
e-chains (following DIN EN 50363-4-1). z Especially soft cable design, for reduced forces
®
Colour: jet black (similar to RAL 9005) z Pick and place machines, automatic doors, cleanroom, very quick handling
Electrical information

Nominal voltage 300/500V (following DIN VDE 0298-3) Part No. Number of cores and conductor Outer diameter Copper Weight
300V (following UL) nominal cross section (d) max. index
Testing voltage 2,000V (following DIN EN 50395) [mm²] [mm] [kg/km] [kg/km]
CFSOFT1.02.03 3x0.25 5.5 9 28
Properties and approvals CFSOFT1.02.08 8x0.25 7.0 21 62
UV resistance Medium CFSOFT1.03.04 4x0.34 6.0 15 39
CFSOFT1.05.04 4x0.5 7.0 21 52

Oil resistance Oil-resistant (following DIN EN 50363-4-1), Class 2 Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core
Flame-retardant According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2 / Horizontal Flame
®
Cables available in the chainflex CASE
Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
Example image 1992) More on this on page 24/25 and online: www.igus-asean.com/cf-case
Silicone-free
Simple savings on delivery, storage space and re-ordering with
®
®
the chainflex CASE - ship'n store by igus .
EPLAN download, configurators  www.igus-asean.com/CFSOFT1
