CFSOFT2 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CFSOFT2
PVC Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PVC
5 x d ® Oil resistance none 1 2 3 4 highest 5 x d

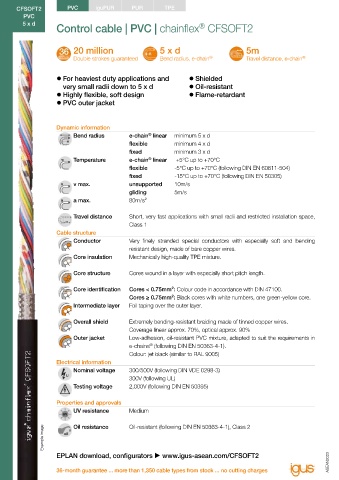

Control cable | PVC | chainflex CFSOFT2 Class 7.1.2.1 Torsion none 1 2 3 4 ±360°

20 million 5 x d 5m Flame-retardant According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2 / Horizontal Flame
Double strokes guaranteed Bend radius, e-chain ® Travel distance, e-chain ®
Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
1992)
z For heaviest duty applications and z Shielded UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
very small radii down to 5 x d z Oil-resistant service life calculator based on 2 billion test cycles per year"
z Highly flexible, soft design z Flame-retardant UL/CSA AWM See data sheet for details  www.igus-asean.com/CFSOFT2
z PVC outer jacket
NFPA Following NFPA 79-2018, chapter 12.9

Dynamic information EAC Certificate No. RU C-DE.ME77.B.00300/19
®
Bend radius e-chain linear minimum 5 x d
flexible minimum 4 x d REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
fixed minimum 3 x d
®
Temperature e-chain linear +5°C up to +70°C Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)
flexible -5°C up to +70°C (following DIN EN 60811-504)
fixed -15°C up to +70°C (following DIN EN 50305) Cleanroom According to ISO Class 2. The outer jacket material of this series complies with
v max. unsupported 10m/s CF5.10.07 - tested by IPA according to standard DIN EN ISO 14644-1
gliding 5m/s CE Following 2014/35/EU
a max. 80m/s²
UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)
Travel distance Short, very fast applications with small radii and restricted installation space,
Class 1
Cable structure Guaranteed service life (details see page 28-29)
Conductor Very finely stranded special conductors with especially soft and bending Double strokes* 10 million 15 million 20 million

resistant design, made of bare copper wires. Temperature, R min. R min. R min.
Core insulation Mechanically high-quality TPE mixture. from/to [°C] [factor x d] [factor x d] [factor x d]
+5/+15 6.8 7.5 8.5
Core structure Cores wound in a layer with especially short pitch length. +15/+60 5 6 7
+60/+70 6.8 7.5 8.5
Core identification Cores < 0.75mm²: Colour code in accordance with DIN 47100. * Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife
Cores ≥ 0.75mm²: Black cores with white numbers, one green-yellow core.
Intermediate layer Foil taping over the outer layer. Typical application areas
z For heaviest duty applications and very small radii down to 5 x d, Class 7
Overall shield Extremely bending-resistant braiding made of tinned copper wires. z Especially for short, very fast applications with small radii and restricted installation space, Class 1
Coverage linear approx. 70%, optical approx. 90% z Light oil influence, Class 2
Outer jacket Low-adhesion, oil-resistant PVC mixture, adapted to suit the requirements in z No torsion, Class 1
®
e-chains (following DIN EN 50363-4-1). z Especially soft cable design, for reduced forces
Colour: jet black (similar to RAL 9005) z Pick and place machines, automatic doors, cleanroom, very quick handling
Electrical information
Nominal voltage 300/500V (following DIN VDE 0298-3)

300V (following UL) Part No. Number of cores and conductor Outer diameter Copper Weight
Testing voltage 2,000V (following DIN EN 50395) nominal cross section (d) max. index
[mm²] [mm] [kg/km] [kg/km]
Properties and approvals CFSOFT2.02.03 (3x0.25)C 6.0 17 41
UV resistance Medium CFSOFT2.02.08 (8x0.25)C 7.5 38 86
CFSOFT2.03.04 (4x0.34)C 6.5 24 50
7.5
(4x0.5)C
36
80
CFSOFT2.05.04
Oil-resistant (following DIN EN 50363-4-1), Class 2
Example image Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
Oil resistance
G = with green-yellow earth core x = without earth core
EPLAN download, configurators  www.igus-asean.com/CFSOFT2
