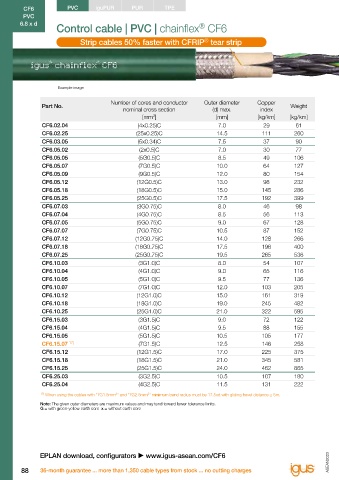

Page 94 - ASEAN Chainflex Catalogue 2023
P. 94
CF6 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF6
PVC Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PVC
6.8 x d ® Oil resistance none 1 2 3 4 highest 6.8 x d
Control cable | PVC | chainflex CF6 Class 5.5.2.1 Torsion none 1 2 3 4 ±360°
Strip cables 50% faster with CFRIP tear strip
®
Example image
Number of cores and conductor Outer diameter Copper Order example: CF6.02.04 - to your desired length (0.5m steps)
Part No. Weight
nominal cross section (d) max. index CF6 chainflex series .02 Code nominal cross section .04 Number of cores
®
[mm²] [mm] [kg/km] [kg/km]
CF6.02.04 (4x0.25)C 7.0 29 61 Order online www.igus-asean.com/CF6
CF6.02.25 (25x0.25)C 14.5 111 260
CF6.03.05 (5x0.34)C 7.5 37 90 Delivery time 24hrs or today.
CF6.05.02 (2x0.5)C 7.0 30 77 Delivery time means time until goods are shipped.
CF6.05.05 (5G0.5)C 8.5 49 106
CF6.05.07 (7G0.5)C 10.0 64 127
CF6.05.09 (9G0.5)C 12.0 80 154
CF6.05.12 (12G0.5)C 13.0 98 232
CF6.05.18 (18G0.5)C 15.0 145 286
CF6.05.25 (25G0.5)C 17.5 192 399
CF6.07.03 (3G0.75)C 8.0 46 98
CF6.07.04 (4G0.75)C 8.5 56 113
CF6.07.05 (5G0.75)C 9.0 67 128
CF6.07.07 (7G0.75)C 10.5 87 152
CF6.07.12 (12G0.75)C 14.0 128 266
CF6.07.18 (18G0.75)C 17.5 196 400
CF6.07.25 (25G0.75)C 19.5 265 536
CF6.10.03 (3G1.0)C 8.0 54 107
CF6.10.04 (4G1.0)C 9.0 65 116
CF6.10.05 (5G1.0)C 9.5 77 136
CF6.10.07 (7G1.0)C 12.0 103 205
CF6.10.12 (12G1.0)C 15.0 161 319
CF6.10.18 (18G1.0)C 19.0 245 482
CF6.10.25 (25G1.0)C 21.0 322 595
CF6.15.03 (3G1.5)C 9.0 72 122 chainflex CF5 and CF6 control cables (green) as well as CF211 measuring system cables (grey) in a screwing
®
®
CF6.15.04 (4G1.5)C 9.5 88 155 station of a car factory. e-chain : E4/00 system with chainfix clip strain relief devices.
CF6.15.05 (5G1.5)C 10.5 105 177
CF6.15.07 17) (7G1.5)C 12.5 146 258
CF6.15.12 (12G1.5)C 17.0 225 375 Cables available in the chainflex CASE
®
CF6.15.18 (18G1.5)C 21.0 345 581
CF6.15.25 (25G1.5)C 24.0 462 865 Simple savings on delivery, storage space and re-ordering with
the chainflex CASE - ship'n store by igus .
®
®
CF6.25.03 (3G2.5)C 10.5 107 180
CF6.25.04 (4G2.5)C 11.5 131 222 More on this on page 24/25 and online: www.igus-asean.com/cf-case
17) When using the cables with "7G1.5mm²" and "7G2.5mm²" minimum bend radius must be 17.5xd with gliding travel distance ≥ 5m.
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core
EPLAN download, configurators www.igus-asean.com/CF6
