CF5 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF5
PVC Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PVC
6.8 x d ® Oil resistance none 1 2 3 4 highest 6.8 x d

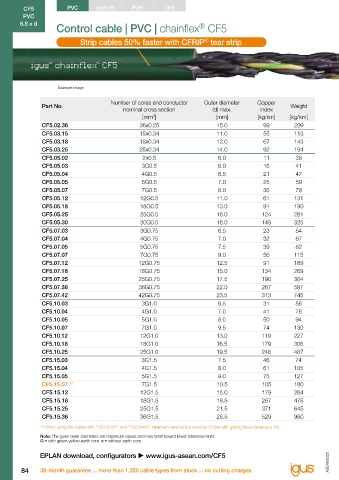

Control cable | PVC | chainflex CF5 Class 5.5.2.2 Torsion none 1 2 3 4 ±360°

Strip cables 50% faster with CFRIP tear strip
®

Example image

Number of cores and conductor Outer diameter Copper Number of cores and conductor Outer diameter Copper
Part No. Weight Part No. Weight
nominal cross section (d) max. index nominal cross section (d) max. index
[mm²] [mm] [kg/km] [kg/km] [mm²] [mm] [kg/km] [kg/km]
CF5.02.36 36x0.25 15.0 99 209 CF5.25.04 4G2.5 10.0 96 170
CF5.03.15 15x0.34 11.0 55 113 CF5.25.05 5G2.5 11.0 120 200
CF5.03.18 18x0.34 12.0 67 143 CF5.25.07 17) 7G2.5 13.0 169 279
CF5.03.25 25x0.34 14.0 92 194 CF5.25.12 12G2.5 18.5 284 480
CF5.05.02 2x0.5 6.0 11 38 CF5.25.18 18G2.5 23.5 427 765
CF5.05.03 3G0.5 6.0 16 41 CF5.25.25 25G2.5 27.5 591 1054
CF5.05.04 4G0.5 6.5 21 47 17) When using the cables with "7G1.5mm²" and "7G2.5mm²" minimum bend radius must be 17.5xd with gliding travel distance ≥ 5m.
CF5.05.05 5G0.5 7.0 25 59
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
CF5.05.07 7G0.5 8.0 36 78 G = with green-yellow earth core x = without earth core
CF5.05.12 12G0.5 11.0 61 131
CF5.05.18 18G0.5 13.0 91 190
CF5.05.25 25G0.5 16.0 124 281
CF5.05.30 30G0.5 18.0 149 325 Cables available in the chainflex CASE
®
CF5.07.03 3G0.75 6.5 23 54
CF5.07.04 4G0.75 7.0 32 67 Simple savings on delivery, storage space and re-ordering with
®
®
the chainflex CASE - ship'n store by igus .
CF5.07.05 5G0.75 7.5 39 82
CF5.07.07 7G0.75 9.0 56 115 More on this on page 24/25 and online: www.igus-asean.com/cf-case
CF5.07.12 12G0.75 12.5 91 189
CF5.07.18 18G0.75 15.0 134 269
CF5.07.25 25G0.75 17.5 190 384
CF5.07.36 36G0.75 22.0 267 587
CF5.07.42 42G0.75 23.5 313 745
CF5.10.03 3G1.0 6.5 31 56
CF5.10.04 4G1.0 7.0 41 78
CF5.10.05 5G1.0 8.0 50 94
CF5.10.07 7G1.0 9.5 74 130
CF5.10.12 12G1.0 13.0 119 227
CF5.10.18 18G1.0 16.5 179 306
CF5.10.25 25G1.0 19.5 248 487
CF5.15.03 3G1.5 7.5 46 74
CF5.15.04 4G1.5 8.0 61 105
CF5.15.05 5G1.5 9.0 75 127
CF5.15.07 17) 7G1.5 10.5 105 180
CF5.15.12 12G1.5 15.0 179 264
CF5.15.18 18G1.5 19.5 267 478
CF5.15.25 25G1.5 21.5 371 645
CF5.15.36 36G1.5 26.5 529 960

17) When using the cables with "7G1.5mm²" and "7G2.5mm²" minimum bend radius must be 17.5xd with gliding travel distance ≥ 5m.
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core chainflex CF5/CF6 for storage retrieval unit: Long travel in longitudinal axis.
®
®
e-chain : Series E4/00 with igus guide trough made of steel
®
EPLAN download, configurators  www.igus-asean.com/CF5
84 36-month guarantee ... more than 1,350 cable types from stock ... no cutting charges ASEAN2023 ASEAN2023 UL-verified chainflex guarantee ... www.igus-asean.com/ul-verified 85
®
