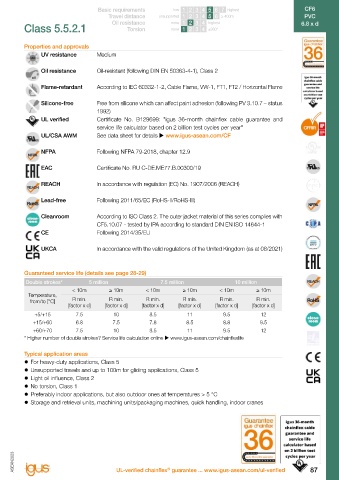

CF6 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF6
PVC Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PVC
6.8 x d ® Oil resistance none 1 2 3 4 highest 6.8 x d
Control cable | PVC | chainflex CF6 Class 5.5.2.1 Torsion none 1 2 3 4 ±360°

10 million 6.8 x d 100m Properties and approvals Medium
UV resistance
Double strokes guaranteed Bend radius, e-chain ® Travel distance, e-chain ®

Oil resistance Oil-resistant (following DIN EN 50363-4-1), Class 2
z For heavy duty applications z Flame-retardant
z PVC outer jacket Flame-retardant According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2 / Horizontal Flame
z Shielded
z Oil-resistant Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
1992)
UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
Dynamic information service life calculator based on 2 billion test cycles per year"
Bend radius e-chain linear minimum 6.8 x d UL/CSA AWM See data sheet for details  www.igus-asean.com/CF
®
flexible minimum 5 x d
fixed minimum 4 x d NFPA Following NFPA 79-2018, chapter 12.9
®
Temperature e-chain linear +5°C up to +70°C
flexible -5°C up to +70°C (following DIN EN 60811-504) EAC Certificate No. RU C-DE.ME77.B.00300/19
fixed -15°C up to +70°C (following DIN EN 50305)
v max. unsupported 10m/s REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
gliding 5m/s
a max. 80m/s 2 Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)

Travel distance Unsupported travels and up to 100m for gliding applications, Class 5 Cleanroom According to ISO Class 2. The outer jacket material of this series complies with
CF5.10.07 - tested by IPA according to standard DIN EN ISO 14644-1
Cable structure CE Following 2014/35/EU
Conductor Finely stranded conductor consisting of bare copper wires (following DIN EN
60228). UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)
Core insulation Cores ≤ 0.5mm²: mechanically high-quality TPE mixture.
Cores ≥ 0.75mm²: mechanically high-quality PVC mixture.
Core structure Number of cores < 12: Cores wound in a layer with short pitch length. Guaranteed service life (details see page 28-29)
Number of cores ≥ 12: Cores wound in bundles which are then wound around Double strokes* 5 million 7.5 million 10 million

a high tensile strength centre element, all with optimised short pitch lengths < 10m ≥ 10m < 10m ≥ 10m < 10m ≥ 10m
and directions. Especially low-torsion structure. Temperature, R min. R min. R min. R min. R min. R min.
Core identification Cores < 0.5mm²: Colour code in accordance with DIN 47100. from/to [°C] [factor x d] [factor x d] [factor x d] [factor x d] [factor x d] [factor x d]
Cores ≥ 0.5mm²: Black cores with white numbers, one green-yellow core. +5/+15 7.5 10 8.5 11 9.5 12
®
Inner jacket PVC mixture adapted to suit the requirements in e-chains . +15/+60 6.8 7.5 7.8 8.5 8.8 9.5
+60/+70 7.5 10 8.5 11 9.5 12
Overall shield Extremely bending-resistant braiding made of tinned copper wires. * Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife
Coverage linear approx. 70%, optical approx. 90%
Outer jacket Low-adhesion, oil-resistant PVC mixture, adapted to suit the requirements in Typical application areas
e-chains (following DIN EN 50363-4-1). z For heavy-duty applications, Class 5
®
Colour: Moss green (similar to RAL 6005) z Unsupported travels and up to 100m for gliding applications, Class 5
CFRIP ® Strip cables faster: a tear strip is moulded into the inner jacket z Light oil influence, Class 2
Video  www.igus-asean.com/CFRIP z No torsion, Class 1
Electrical information z Preferably indoor applications, but also outdoor ones at temperatures > 5 °C
Nominal voltage 300/500V (following DIN VDE 0298-3) z Storage and retrieval units, machining units/packaging machines, quick handling, indoor cranes
600V (following UL)
Testing voltage 2,000V (following DIN EN 50395)
Example image

EPLAN download, configurators  www.igus-asean.com/CF6
