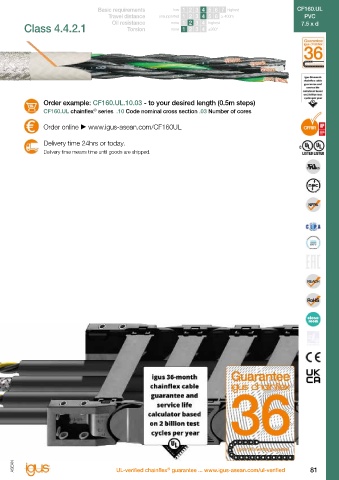

Page 87 - ASEAN Chainflex Catalogue 2023

CF160.UL PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF160.UL
PVC Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PVC
7.5 x d ® Oil resistance none 1 2 3 4 highest 7.5 x d
Control cable | PVC | chainflex CF160.UL Class 4.4.2.1 Torsion none 1 2 3 4 ±360°

Strip cables 50% faster with CFRIP tear strip
®

Example image

Number of cores and conductor Outer diameter Copper Order example: CF160.UL.10.03 - to your desired length (0.5m steps)
Part No. Weight
nominal cross section (d) max. index CF160.UL chainflex series .10 Code nominal cross section .03 Number of cores
®
[mm²] [mm] [kg/km] [kg/km]
CF160.UL.10.03 (3G1.0)C 9.5 53 121 Order online  www.igus-asean.com/CF160UL
CF160.UL.10.04 (4G1.0)C 10.0 66 143
CF160.UL.10.05 (5G1.0)C 11.0 77 164 Delivery time 24hrs or today.
CF160.UL.10.07 (7G1.0)C 12.5 107 220 Delivery time means time until goods are shipped.
CF160.UL.10.12 (12G1.0)C 18.5 177 389
CF160.UL.10.18 (18G1.0)C 23.5 280 648
CF160.UL.15.03 (3G1.5)C 10.0 72 149
CF160.UL.15.04 (4G1.5)C 11.0 89 175
CF160.UL.15.05 (5G1.5)C 12.0 105 204
CF160.UL.15.07 17) (7G1.5)C 13.5 140 271
CF160.UL.15.12 (12G1.5)C 20.0 243 478
CF160.UL.15.18 (18G1.5)C 25.5 373 762
CF160.UL.25.03 (3G2.5)C 11.0 103 185
CF160.UL.25.04 (4G2.5)C 12.0 129 219
CF160.UL.25.05 (5G2.5)C 13.0 159 264
CF160.UL.25.07 17) (7G2.5)C 14.5 223 361
CF160.UL.25.12 (12G2.5)C 23.5 389 688
CF160.UL.25.18 (18G2.5)C 29.5 573 1092
17) When using the cables with "7G1.5mm²" and "7G2.5mm²" minimum bend radius must be 17.5xd with gliding travel distance ≥ 5m.
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core

The only MTW/TC-ER cable for e-chain AND cable tray
®
UL
TC-ER UL 1277
MTW UL 1063
WTTC UL 2277
DP-1 UL 1690
AWM 2587

CSA:
C(UL) CIC/TC

Specifications:
OIL RES I / SUN RES
75°C wet ≥2.5mm²
90°C dry
DIR BUR ≥2.5 mm²
* with guaranteed service life for use in e-chains according to the guarantee conditions
®
