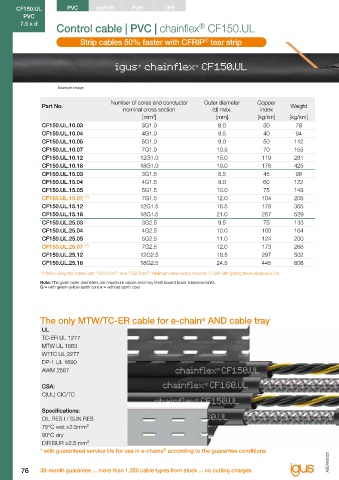

CF150.UL PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF150.UL
PVC Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PVC
7.5 x d ® Oil resistance none 1 2 3 4 highest 7.5 x d
Control cable | PVC | chainflex CF150.UL Class 4.4.2.2 Torsion none 1 2 3 4 ±360°

Strip cables 50% faster with CFRIP tear strip
®

Example image

Number of cores and conductor Outer diameter Copper Order example: CF150.UL.10.03 - to your desired length (0.5m steps)
Part No. Weight
nominal cross section (d) max. index CF150.UL chainflex series .10 Code nominal cross section .03 Number of cores
®
[mm²] [mm] [kg/km] [kg/km]
CF150.UL.10.03 3G1.0 8.0 30 78 Order online  www.igus-asean.com/ CF150UL
CF150.UL.10.04 4G1.0 8.5 40 94
CF150.UL.10.05 5G1.0 9.0 50 112 Delivery time 24hrs or today.
CF150.UL.10.07 7G1.0 10.5 70 155 Delivery time means time until goods are shipped.
CF150.UL.10.12 12G1.0 15.0 119 281
CF150.UL.10.18 18G1.0 19.0 178 425
CF150.UL.15.03 3G1.5 8.5 45 98
®
CF150.UL.15.04 4G1.5 9.0 60 122 Cables available in the chainflex CASE
CF150.UL.15.05 5G1.5 10.0 75 148 Simple savings on delivery, storage space and re-ordering with
CF150.UL.15.07 17) 7G1.5 12.0 104 205 the chainflex CASE - ship'n store by igus .
®
®
CF150.UL.15.12 12G1.5 16.5 178 365 More on this on page 24/25 and online: www.igus-asean.com/cf-case
CF150.UL.15.18 18G1.5 21.0 267 529
CF150.UL.25.03 3G2.5 9.5 75 133
CF150.UL.25.04 4G2.5 10.0 100 164
CF150.UL.25.05 5G2.5 11.0 124 200
CF150.UL.25.07 17) 7G2.5 12.0 173 268
CF150.UL.25.12 12G2.5 18.5 297 502
CF150.UL.25.18 18G2.5 24.5 445 808
17) When using the cables with "7G1.5mm²" and "7G2.5mm²" minimum bend radius must be 17.5xd with gliding travel distance ≥ 5m.
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core

The only MTW/TC-ER cable for e-chain AND cable tray
®
UL
TC-ER UL 1277
MTW UL 1063
WTTC UL 2277
DP-1 UL 1690
AWM 2587

CSA:
C(UL) CIC/TC

Specifications:
OIL RES I / SUN RES
75°C wet ≥2.5mm²
90°C dry
DIR BUR ≥2.5 mm²
* with guaranteed service life for use in e-chains according to the guarantee conditions
®
