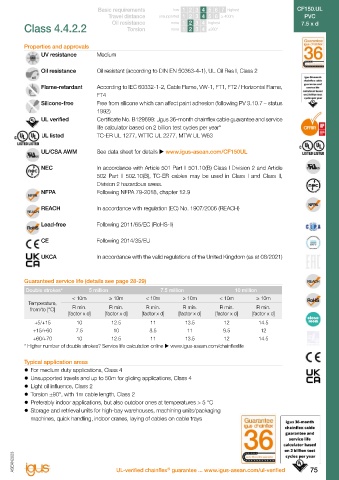

CF150.UL PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF150.UL
PVC Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PVC
7.5 x d ® Oil resistance none 1 2 3 4 highest 7.5 x d
Control cable | PVC | chainflex CF150.UL Class 4.4.2.2 Torsion none 1 2 3 4 ±360°

10 million 7.5 x d 50m Properties and approvals Medium
UV resistance
Double strokes guaranteed Bend radius, e-chain ® Travel distance

Oil resistance Oil resistant (according to DIN EN 50363-4-1), UL Oil Res I, Class 2
z For medium duty applications UL CSA:
z PVC outer jacket TC-ER UL 1277 C(UL) CIC/TC Flame-retardant According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2 / Horizontal Flame,
z Oil-resistant MTW UL 1063 FT4
z Flame-retardant WTTC UL 2277 Specifications: Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
z TC-ER (Power and Control Tray Cable) DP-1 UL 1690 OIL RES I / SUN RES 1992)
AWM 2587 75°C wet ≥2.5mm² UL verified Certificate No. B129699: „igus 36-month chainflex cable guarantee and service
90°C dry life calculator based on 2 billion test cycles per year“
DIR BUR ≥2.5mm² UL listed TC-ER UL 1277, WTTC UL 2277, MTW UL W63

Dynamic information UL/CSA AWM See data sheet for details  www.igus-asean.com/CF150UL
Bend radius e-chain linear minimum 7.5 x d
®
flexible minimum 6 x d NEC In accordance with Article 501 Part II 501.10(B) Class I Division 2 and Article
fixed minimum 4 x d 502 Part II 502.10(B), TC-ER cables may be used in Class I and Class II,
Temperature e-chain linear +5°C up to +70°C Division 2 hazardous areas.
®
flexible -5°C up to +70°C (following DIN EN 60811-504) NFPA Following NFPA 79-2018, chapter 12.9
fixed -15°C up to +70°C (following DIN EN 50305)
v max. unsupported 3m/s REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
gliding 2m/s
a max. 20m/s² Lead-free Following 2011/65/EC (RoHS-II)

Travel distance Unsupported travels and up to 50m for gliding applications, Class 4 CE Following 2014/35/EU

Torsion Torsion ±90°, with 1m cable length, Class 2 UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)

Cable structure
Conductor Finely stranded conductor consisting of bare copper wires (following DIN EN Guaranteed service life (details see page 28-29)
60228). Double strokes* 5 million 7.5 million 10 million

Core insulation Mechanically high-quality PVC/PA mixture. < 10m ≥ 10m < 10m ≥ 10m < 10m ≥ 10m
Temperature,
from/to [°C] R min. R min. R min. R min. R min. R min.
Core structure Number of cores < 12: Cores wound in a layer with short pitch length. [factor x d] [factor x d] [factor x d] [factor x d] [factor x d] [factor x d]
Number of cores ≥ 12: Cores wound in bundles which are then wound around +5/+15 10 12.5 11 13.5 12 14.5
a high tensile strength centre element, all with optimised short pitch lengths +15/+60 7.5 10 8.5 11 9.5 12
and directions. Especially low-torsion structure. +60/+70 10 12.5 11 13.5 12 14.5
Core identification Black cores with white numbers, one green-yellow core. * Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife

Outer jacket Low-adhesion, oil-resistant PVC mixture, adapted to suit the requirements in Typical application areas
e-chains (following DIN EN 50363-4-1) z For medium duty applications, Class 4
®
Colour: jet black (similar to RAL 9005) z Unsupported travels and up to 50m for gliding applications, Class 4
CFRIP ® Strip cables faster: a tear strip is moulded into the outer jacket z Light oil influence, Class 2
Video  www.igus-asean.com/CFRIP z Torsion ±90°, with 1m cable length, Class 2
Electrical information z Preferably indoor applications, but also outdoor ones at temperatures > 5 °C
Nominal voltage 300/500V (following DIN VDE 0298-3) z Storage and retrieval units for high-bay warehouses, machining units/packaging
600V TC-ER, 1000V WTTC, 600V MTW, 600V AWM machines, quick handling, indoor cranes, laying of cables on cable trays
2,000V (following DIN EN 50395)
Testing voltage
Example image

EPLAN download, configurators  www.igus-asean.com/CF150UL ASEAN2023 ASEAN2023
®
