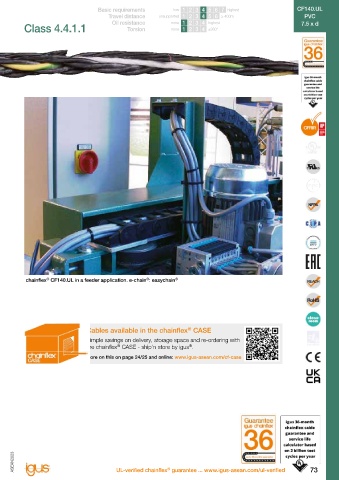

CF140.UL PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF140.UL
PVC Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PVC
7.5 x d ® Oil resistance none 1 2 3 4 highest 7.5 x d
Control cable | PVC | chainflex CF140.UL Class 4.4.1.1 Torsion none 1 2 3 4 ±360°
Strip cables 50% faster with CFRIP tear strip
®
Example image
Number of cores and conductor Outer diameter Copper
Part No. Weight
nominal cross section (d) max. index
[mm²] [mm] [kg/km] [kg/km]
CF140.02.12.UL (12x0.25)C 10.5 72 133
CF140.03.05.UL (5x0.34)C 7.5 36 72
CF140.05.03.UL (3G0.5)C 7.0 33 72
CF140.05.05.UL (5G0.5)C 8.0 45 91
CF140.05.18.UL (18G0.5)C 14.5 147 258
CF140.05.36.UL (36G0.5)C 18.5 258 468
CF140.07.03.UL (3G0.75)C 8.0 42 85
CF140.07.04.UL (4G0.75)C 8.5 51 102
CF140.07.05.UL (5G0.75)C 9.0 61 115
CF140.07.07.UL (7G0.75)C 10.0 83 152
CF140.07.12.UL (12G0.75)C 13.0 136 263
CF140.07.18.UL (18G0.75)C 15.5 194 359
CF140.07.25.UL (25G0.75)C 18.0 261 479
CF140.10.02.UL (2x1.0)C 8.0 35 86
CF140.10.03.UL (3G1.0)C 8.5 51 105
CF140.10.04.UL (4G1.0)C 9.0 62 118
CF140.10.05.UL (5G1.0)C 9.5 74 136
CF140.10.07.UL (7G1.0)C 10.5 104 176
CF140.10.12.UL (12G1.0)C 14.0 166 300
CF140.10.18.UL (18G1.0)C 16.5 240 413 chainflex CF140.UL in a feeder application. e-chain : easychain ®
®
®
CF140.10.25.UL (25G1.0)C 19.5 325 562
CF140.15.03.UL (3G1.5)C 9.0 68 126
CF140.15.04.UL (4G1.5)C 9.5 86 146
CF140.15.05.UL (5G1.5)C 9.5 108 168
CF140.15.07.UL 17) (7G1.5)C 11.5 144 226
CF140.15.12.UL (12G1.5)C 16.0 233 387 Cables available in the chainflex CASE
®
CF140.15.18.UL (18G1.5)C 19.0 346 463 Simple savings on delivery, storage space and re-ordering with
CF140.15.25.UL (25G1.5)C 22.5 464 737 the chainflex CASE - ship'n store by igus .
®
®
CF140.15.36.UL (36G1.5)C 26.5 663 1150
CF140.25.03.UL (3G2.5)C 10.5 106 202 More on this on page 24/25 and online: www.igus-asean.com/cf-case
CF140.25.04.UL (4G2.5)C 11.5 140 210
17) When using the cables with "7G1.5mm²" and "7G2.5mm²" minimum bend radius must be 17.5xd with gliding travel distance ≥ 5m.
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core
EPLAN download, configurators www.igus-asean.com/CF140UL
