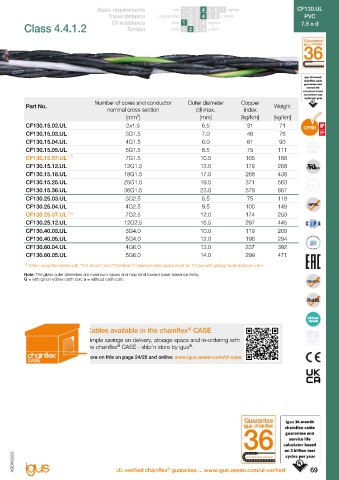

Page 75 - ASEAN Chainflex Catalogue 2023

CF130.UL PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF130.UL
PVC Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PVC
7.5 x d ® Oil resistance none 1 2 3 4 highest 7.5 x d
Control cable | PVC | chainflex CF130.UL Class 4.4.1.2 Torsion none 1 2 3 4 ±360°

Strip cables 50% faster with CFRIP tear strip
®

Example image

Number of cores and conductor Outer diameter Copper Number of cores and conductor Outer diameter Copper
Part No. Weight Part No. Weight
nominal cross section (d) max. index nominal cross section (d) max. index
[mm²] [mm] [kg/km] [kg/km] [mm²] [mm] [kg/km] [kg/km]
CF130.02.03.UL 3x0.25 5.0 9 26 CF130.15.02.UL 2x1.5 6.5 31 71
CF130.02.04.UL 4x0.25 5.5 11 35 CF130.15.03.UL 3G1.5 7.0 46 76
CF130.02.06.UL 6x0.25 6.0 16 48 CF130.15.04.UL 4G1.5 8.0 61 93
CF130.02.07.UL 7x0.25 6.5 19 56 CF130.15.05.UL 5G1.5 8.5 75 111
CF130.02.12.UL 12x0.25 8.5 33 96 CF130.15.07.UL 17) 7G1.5 10.5 105 166
CF130.02.18.UL 18x0.25 10.0 46 123 CF130.15.12.UL 12G1.5 13.0 179 288
CF130.02.20.UL 20x0.25 10.5 51 145 CF130.15.18.UL 18G1.5 17.0 268 438
CF130.02.25.UL 25x0.25 11.5 66 164 CF130.15.25.UL 25G1.5 19.5 371 563
CF130.02.30.UL 30x0.25 12.5 75 188 CF130.15.36.UL 36G1.5 23.0 579 887
CF130.03.02.UL 2x0.34 5.0 8 27 CF130.25.03.UL 3G2.5 8.5 75 118
CF130.03.05.UL 5x0.34 6.0 18 42 CF130.25.04.UL 4G2.5 9.5 100 149
CF130.05.02.UL 2x0.5 5.5 11 38 CF130.25.07.UL 17) 7G2.5 12.0 174 250
CF130.05.03.UL 3G0.5 5.5 16 40 CF130.25.12.UL 12G2.5 16.5 297 445
CF130.05.04.UL 4G0.5 6.0 21 47 CF130.40.03.UL 3G4.0 10.0 119 209
CF130.05.05.UL 5G0.5 6.5 26 56 CF130.40.05.UL 5G4.0 12.0 198 294
CF130.05.07.UL 7G0.5 7.5 37 76 CF130.60.04.UL 4G6.0 13.0 237 392
CF130.05.12.UL 12G0.5 10.0 63 140 CF130.60.05.UL 5G6.0 14.0 299 471
CF130.05.18.UL 18G0.5 12.0 94 192 17) When using the cables with "7G1.5mm²" and "7G2.5mm²" minimum bend radius must be 17.5xd with gliding travel distance ≥ 5m.
CF130.05.25.UL 25G0.5 13.5 129 259
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
CF130.07.02.UL 2x0.75 6.0 16 48 G = with green-yellow earth core x = without earth core
CF130.07.03.UL 3G0.75 6.0 23 50
CF130.07.04.UL 4G0.75 6.5 31 60
CF130.07.05.UL 5G0.75 7.0 38 70
CF130.07.07.UL 7G0.75 8.0 54 96
CF130.07.12.UL 12G0.75 11.0 91 175
CF130.07.18.UL 18G0.75 13.5 134 248 Cables available in the chainflex CASE
®
CF130.07.25.UL 25G0.75 16.0 186 346
CF130.07.36.UL 36G0.75 19.0 293 531 Simple savings on delivery, storage space and re-ordering with
®
the chainflex CASE - ship'n store by igus .
®
CF130.07.42.UL 42G0.75 21.0 341 608
CF130.10.02.UL 2x1.0 6.0 21 55 More on this on page 24/25 and online: www.igus-asean.com/cf-case
CF130.10.03.UL 3G1.0 6.5 31 61
CF130.10.04.UL 4G1.0 7.0 41 74
CF130.10.05.UL 5G1.0 7.5 50 87
CF130.10.07.UL 7G1.0 9.0 71 118
CF130.10.12.UL 12G1.0 12.5 120 228
CF130.10.18.UL 18G1.0 15.0 179 308
CF130.10.25.UL 25G1.0 17.5 248 410

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core

EPLAN download, configurators  www.igus-asean.com/CF130UL
