CF130.UL PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF130.UL
PVC Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PVC
7.5 x d ® Oil resistance none 1 2 3 4 highest 7.5 x d

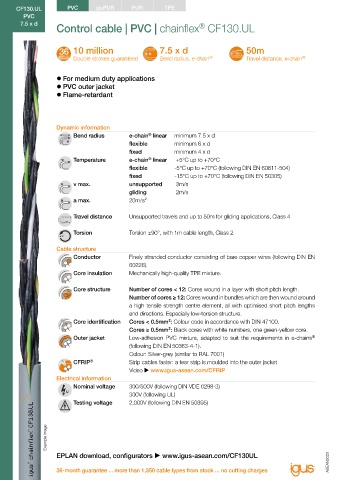

Control cable | PVC | chainflex CF130.UL Class 4.4.1.2 Torsion none 1 2 3 4 ±360°

10 million 7.5 x d 50m Properties and approvals According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2 / Horizontal Flame
Flame-retardant
Double strokes guaranteed Bend radius, e-chain ® Travel distance, e-chain ®

Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
z For medium duty applications 1992)
z PVC outer jacket UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
z Flame-retardant service life calculator based on 2 billion test cycles per year"
UL/CSA AWM See data sheet for details  www.igus-asean.com/CF130UL

NFPA Following NFPA 79-2018, chapter 12.9
Dynamic information
®
Bend radius e-chain linear minimum 7.5 x d EAC Certificate No. RU C-DE.ME77.B.00300/19
flexible minimum 6 x d
fixed minimum 4 x d REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
®
Temperature e-chain linear +5°C up to +70°C
flexible -5°C up to +70°C (following DIN EN 60811-504) Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)
fixed -15°C up to +70°C (following DIN EN 50305)
v max. unsupported 3m/s Cleanroom According to ISO Class 1, material/cable tested by IPA according to DIN EN
gliding 2m/s ISO standard 14644-1
a max. 20m/s² CE Following 2014/35/EU

Travel distance Unsupported travels and up to 50m for gliding applications, Class 4 UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)

Torsion Torsion ±90°, with 1m cable length, Class 2
Guaranteed service life (details see page 28-29)
Cable structure Double strokes* 5 million 7.5 million 10 million

Conductor Finely stranded conductor consisting of bare copper wires (following DIN EN < 10m ≥ 10m < 10m ≥ 10m < 10m ≥ 10m
60228). Temperature, R min. R min. R min. R min. R min. R min.
Core insulation Mechanically high-quality TPE mixture. from/to [°C] [factor x d] [factor x d] [factor x d] [factor x d] [factor x d] [factor x d]
+5/+15 10 12.5 11 13.5 12 14.5
Core structure Number of cores < 12: Cores wound in a layer with short pitch length. +15/+60 7.5 10 8.5 11 9.5 12
Number of cores ≥ 12: Cores wound in bundles which are then wound around +60/+70 10 12.5 11 13.5 12 14.5
a high tensile strength centre element, all with optimised short pitch lengths * Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife
and directions. Especially low-torsion structure.
Core identification Cores < 0.5mm²: Colour code in accordance with DIN 47100. Typical application areas
Cores ≥ 0.5mm²: Black cores with white numbers, one green-yellow core. z For medium duty applications, Class 4
Outer jacket Low-adhesion PVC mixture, adapted to suit the requirements in e-chains z Unsupported travels and up to 50m for gliding applications, Class 4
®
(following DIN EN 50363-4-1). z Without influence of oil, Class 1
Colour: Silver-grey (similar to RAL 7001) z Torsion ±90°, with 1m cable length, Class 2
CFRIP ® Strip cables faster: a tear strip is moulded into the outer jacket z Preferably indoor applications
Video  www.igus-asean.com/CFRIP z Wood/stone processing, packaging industry, feeding, handling, adjusting devices
Electrical information
Nominal voltage 300/500V (following DIN VDE 0298-3)
300V (following UL)
Testing voltage 2,000V (following DIN EN 50395)

Example image

®
®
EPLAN download, configurators  www.igus-asean.com/CF130UL chainflex CF130.UL for woodworking application. e-chain : E4/light
66 36-month guarantee ... more than 1,350 cable types from stock ... no cutting charges ASEAN2023 ASEAN2023 UL-verified chainflex guarantee ... www.igus-asean.com/ul-verified 67
®
