CF880 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF880
PVC Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PVC
12.5 x d ® Oil resistance none 1 2 3 4 highest 12.5 x d
Control cable | PVC | chainflex CF880 Class 3.1.1.1 Torsion none 1 2 3 4 ±360°

Example image

Number of cores and conductor Outer diameter Copper Number of cores and conductor Outer diameter Copper
Part No. Weight Part No. Weight
nominal cross section (d) max. index nominal cross section (d) max. index
[mm²] [mm] [kg/km] [kg/km] [mm²] [mm] [kg/km] [kg/km]
CF880.05.02 2x0.5 5.0 11 32 CF880.25.03 3G2.5 8.5 78 120
CF880.05.03 3G0.5 5.5 16 37 CF880.25.04 4G2.5 9.0 103 150
CF880.05.04 4G0.5 6.0 21 46 CF880.25.05 5G2.5 10.0 129 184
CF880.05.05 5G0.5 6.5 26 55 CF880.25.07 7G2.5 12.0 181 256
CF880.05.07 7G0.5 7.5 37 73 CF880.25.12 12G2.5 15.0 327 414
CF880.05.12 12G0.5 8.5 63 108 Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
CF880.05.18 18G0.5 10.0 94 158 G = with green-yellow earth core x = without earth core
CF880.05.25 25G0.5 12.0 128 227
CF880.07.02 2x0.75 5.5 16 40
CF880.07.03 3G0.75 6.0 24 49
CF880.07.04 4G0.75 6.5 32 61 Cables available in the chainflex CASE
®
CF880.07.05 5G0.75 7.0 40 73
CF880.07.07 7G0.75 8.0 56 99 Simple savings on delivery, storage space and re-ordering with
®
®
the chainflex CASE - ship'n store by igus .
CF880.07.12 12G0.75 10.0 94 152
CF880.07.18 18G0.75 11.5 140 167 More on this on page 24/25 and online: www.igus-asean.com/cf-case
CF880.07.25 25G0.75 13.5 194 284
CF880.10.02 2x1.0 6.0 21 48
CF880.10.03 3G1.0 6.5 32 58
CF880.10.04 4G1.0 7.0 42 62
CF880.10.05 5G1.0 7.5 52 86
CF880.10.07 7G1.0 8.5 73 116
CF880.10.12 12G1.0 10.5 124 182
CF880.10.18 18G1.0 12.5 186 278
CF880.10.25 25G1.0 15.0 258 393
CF880.15.02 2x1.5 6.5 32 64
CF880.15.03 3G1.5 7.0 47 82
CF880.15.04 4G1.5 7.5 63 104
CF880.15.05 5G1.5 8.5 78 120
CF880.15.07 7G1.5 10.0 109 167
CF880.15.12 12G1.5 12.0 186 260
CF880.15.18 18G1.5 14.5 279 370
CF880.15.25 25G1.5 17.5 387 514
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core

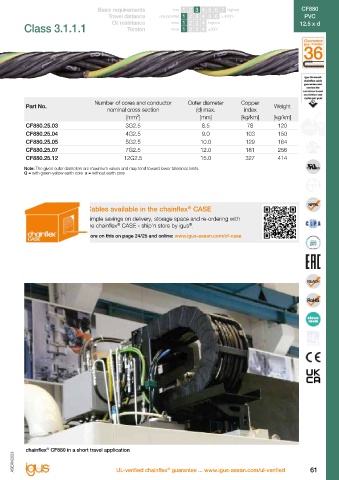

chainflex CF880 in a short travel application
®
EPLAN download, configurators  www.igus-asean.com/CF880
