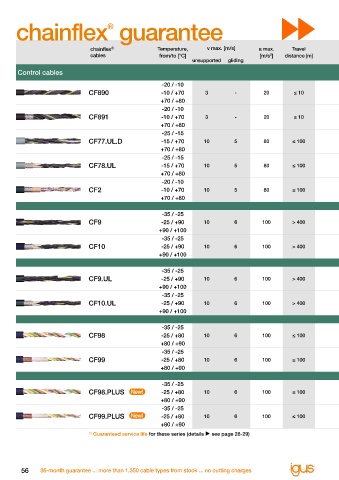

chainflex guarantee Guaranteed service life (1)
®

Minimum bend radius Minimum bend radius Minimum bend radius
®
chainflex Temperature, v max. [m/s] a max. Travel [factor x d] for travel distance [factor x d] for travel distance [factor x d] for travel distance Page
cables from/to [°C] [m/s ] distance [m]
2
unsupported gliding < 10m ≥ 10m < 10m ≥ 10m < 10m ≥ 10m
5 million (1 million) 7.5 million (3 million) 10 million (5 million)
Control cables
double strokes * double strokes * double strokes *
-20 / -10 15 - 16 - 17 -
CF890 -10 / +70 3 - 20 ≤ 10 12.5 - 13.5 - 14.5 - 94
+70 / +80 15 - 16 - 17 -
-20 / -10 15 - 16 - 17 -
CF891 -10 / +70 3 - 20 ≤ 10 12.5 - 13.5 - 14.5 - 98
+70 / +80 15 - 16 - 17 -
-25 / -15 8.5 10 9.5 11 10.5 12
CF77.UL.D -15 / +70 10 5 80 ≤ 100 6.8 7.5 7.5 8.5 8.5 9.5 102
+70 / +80 7.5 10 9.5 11 10.5 12
-25 / -15 8.5 10 9.5 11 10.5 12
CF78.UL -15 / +70 10 5 80 ≤ 100 6.8 7.5 7.5 8.5 8.5 9.5 106
+70 / +80 7.5 10 9.5 11 10.5 12
-20 / -10 6.8 7.5 8.5
CF2 -10 / +70 10 5 80 ≤ 100 5 6.8 7.5 110
+70 / +80 6.8 7.5 8.5
5 million 7.5 million 12.5 million
-35 / -25 6.8 7.5 8.5
CF9 -25 / +90 10 6 100 > 400 5 6 7 114
+90 / +100 6.8 7.5 8.5
-35 / -25 6.8 7.5 8.5
CF10 -25 / +90 10 6 100 > 400 5 6 7 118
+90 / +100 6.8 7.5 8.5
5 million 7.5 million 10 million
-35 / -25 6.8 7.5 10
CF9.UL -25 / +90 10 6 100 > 400 5 6 7 122
+90 / +100 6.8 7.5 10
-35 / -25 6.8 7.5 8.5
CF10.UL -25 / +90 10 6 100 > 400 5 6 7 126
+90 / +100 6.8 7.5 8.5
20 million 30 million 40 million
-35 / -25 5 6 7
CF98 -25 / +80 10 6 100 ≤ 100 4 5 6 130
+80 / +90 5 6 7
-35 / -25 5 6 7
CF99 -25 / +80 10 6 100 ≤ 100 4 5 6 132
+80 / +90 5 6 7
5 million 40 million 100 million
-35 / -25 4 6 7
CF98.PLUS New! -25 / +80 10 6 100 ≤ 100 3 5 6 134
+80 / +90 4 6 7
-35 / -25 4 6 7
CF99.PLUS New! -25 / +80 10 6 100 ≤ 100 3 5 6 136
+80 / +90 4 6 7
(1) Guaranteed service life for these series (details  see page 28-29) * Higher number of double strokes? Calculate service life online:  www.igus-asean.com/chainflexlife
Values in brackets apply to the CF890 and CF891 series
