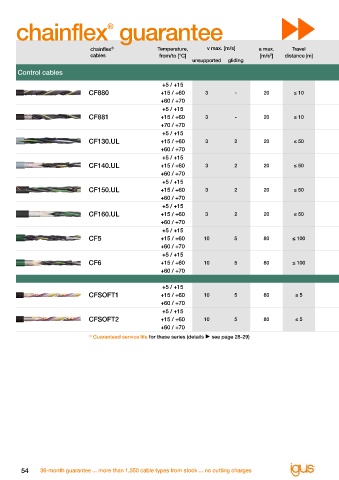

Page 60 - ASEAN Chainflex Catalogue 2023

chainflex guarantee Guaranteed service life (1)
®

Minimum bend radius [factor Minimum bend radius [factor Minimum bend radius [factor
®
chainflex Temperature, v max. [m/s] a max. Travel x d] for travel distance x d] for travel distance x d] for travel distance Page
2
cables from/to [°C] [m/s ] distance [m]
unsupported gliding < 10m ≥ 10m < 10m ≥ 10m < 10m ≥ 10m
5 million (1 million) 7.5 million (3 million) 10 million (5 million)
Control cables
double strokes * double strokes * double strokes *
+5 / +15 15 - 16 - 17 -
CF880 +15 / +60 3 - 20 ≤ 10 12.5 - 13.5 - 14.5 - 58
+60 / +70 15 - 16 - 17 -
+5 / +15 15 - 16 - 17 -
CF881 +15 / +60 3 - 20 ≤ 10 12.5 - 13.5 - 14.5 - 62
+70 / +70 15 - 16 - 17 -
+5 / +15 10 12.5 11 13.5 12 14.5
CF130.UL +15 / +60 3 2 20 ≤ 50 7.5 10 8.5 11 9.5 12 66
+60 / +70 10 12.5 11 13.5 12 14.5
+5 / +15 10 12.5 11 13.5 12 14.5
CF140.UL +15 / +60 3 2 20 ≤ 50 7.5 10 8.5 11 9.5 12 70
+60 / +70 10 12.5 11 13.5 12 14.5
+5 / +15 10 12.5 11 13.5 12 14.5
CF150.UL +15 / +60 3 2 20 ≤ 50 7.5 10 8.5 11 9.5 12 74
+60 / +70 10 12.5 11 13.5 12 14.5
+5 / +15 10 12.5 11 13.5 12 14.5
CF160.UL +15 / +60 3 2 20 ≤ 50 7.5 10 8.5 11 9.5 12 78
+60 / +70 10 12.5 11 13.5 12 14.5
+5 / +15 7.5 10 8.5 11 9.5 12
CF5 +15 / +60 10 5 80 ≤ 100 6.8 7.5 7.8 8.5 8.8 9.5 82
+60 / +70 7.5 10 8.5 11 9.5 12
+5 / +15 7.5 10 8.5 11 9.5 12
CF6 +15 / +60 10 5 80 ≤ 100 6.8 7.5 7.8 8.5 8.8 9.5 86
+60 / +70 7.5 10 8.5 11 9.5 12
10 million 15 million 20 million
+5 / +15 6.8 - 7.5 - 8.5 -
CFSOFT1 +15 / +60 10 5 80 ≤ 5 5 - 6 - 7 - 90
+60 / +70 6.8 - 7.5 - 8.5 -
+5 / +15 6.8 - 7.5 - 8.5 -
CFSOFT2 +15 / +60 10 5 80 ≤ 5 5 - 6 - 7 - 92
+60 / +70 6.8 - 7.5 - 8.5 -
(1) Guaranteed service life for these series (details  see page 28-29) * Higher number of double strokes? Calculate service life online:  www.igus-asean.com/chainflexlife
Values in brackets apply to the CF880 and CF881 series
