CF880 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF880
PVC Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PVC
12.5 x d ® Oil resistance none 1 2 3 4 highest 12.5 x d

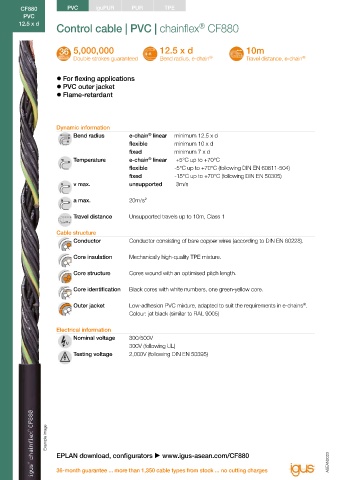

Control cable | PVC | chainflex CF880 Class 3.1.1.1 Torsion none 1 2 3 4 ±360°

5,000,000 12.5 x d 10m Properties and approvals According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2 / Horizontal Flame
Flame-retardant
Double strokes guaranteed Bend radius, e-chain ® Travel distance, e-chain ®

Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
z For flexing applications 1992)
z PVC outer jacket UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
z Flame-retardant service life calculator based on 2 billion test cycles per year"
UL/CSA AWM See datasheet for details  www.igus-asean.com/CF880

NFPA Following NFPA 79-2018, chapter 12.9
Dynamic information
®
Bend radius e-chain linear minimum 12.5 x d EAC Certificate No. RU C-DE.ME77.B.00300/19
flexible minimum 10 x d
fixed minimum 7 x d REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
®
Temperature e-chain linear +5°C up to +70°C
flexible -5°C up to +70°C (following DIN EN 60811-504) Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)
fixed -15°C up to +70°C (following DIN EN 50305)
v max. unsupported 3m/s CE Following 2014/35/EU

a max. 20m/s² UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)

Travel distance Unsupported travels up to 10m, Class 1
Guaranteed service life (details see page 28-29)
Cable structure Double strokes* 1 million 3 million 5 million

Conductor Conductor consisting of bare copper wires (according to DIN EN 60228). Temperature, R min. R min. R min.
from/to [°C] [factor x d] [factor x d] [factor x d]
Core insulation Mechanically high-quality TPE mixture. +5/+15 15 16 17
+15/+60 12.5 13.5 14.5
Core structure Cores wound with an optimised pitch length. +60/+70 15 16 17
* Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife
Core identification Black cores with white numbers, one green-yellow core.
Typical application areas
Outer jacket Low-adhesion PVC mixture, adapted to suit the requirements in e-chains . z For flexing applications, Class 3
®
Colour: jet black (similar to RAL 9005) z Especially for unsupported travels, Class 1
z Without influence of oil, Class 1
Electrical information z No torsion, Class 1
Nominal voltage 300/500V z Preferably indoor applications
300V (following UL) z Wood/stone processing, packaging industry, feeding, handling, adjusting devices
Testing voltage 2,000V (following DIN EN 50395)

Example image

EPLAN download, configurators  www.igus-asean.com/CF880
