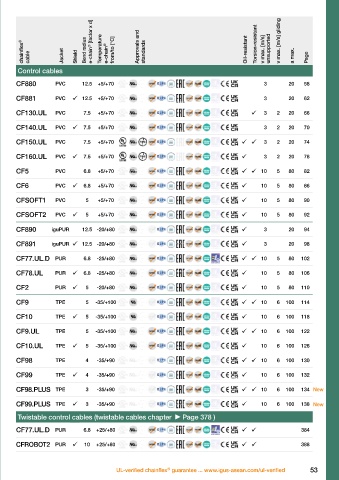

Page 59 - ASEAN Chainflex Catalogue 2023

Control cables
chainflex ® cable Jacket Shield Bend radius e-chain ® [factor x d] Temperature e-chain ® from/to [°C] Approvals and standards Oil-resistant Torsion-resistant v max. [m/s] unsupported v max. [m/s] gliding a max. Page

Control cables
CF880 PVC 12.5 +5/+70 3 20 58

CF881 PVC  12.5 +5/+70 3 20 62

CF130.UL PVC 7.5 +5/+70  3 2 20 66

CF140.UL PVC  7.5 +5/+70 3 2 20 70

CF150.UL PVC 7.5 +5/+70   3 2 20 74

CF160.UL PVC  7.5 +5/+70  3 2 20 78

CF5 PVC 6.8 +5/+70   10 5 80 82

CF6 PVC  6.8 +5/+70  10 5 80 86

CFSOFT1 PVC 5 +5/+70  10 5 80 90

CFSOFT2 PVC  5 +5/+70  10 5 80 92

CF890 iguPUR 12.5 -20/+80  3 20 94

CF891 iguPUR  12.5 -20/+80  3 20 98

CF77.UL.D PUR 6.8 -25/+80   10 5 80 102

CF78.UL PUR  6.8 -25/+80  10 5 80 106

CF2 PUR  5 -20/+80  10 5 80 110

CF9 TPE 5 -35/+100   10 6 100 114

CF10 TPE  5 -35/+100  10 6 100 118

CF9.UL TPE 5 -35/+100   10 6 100 122

CF10.UL TPE  5 -35/+100  10 6 100 126

CF98 TPE 4 -35/+90   10 6 100 130

CF99 TPE  4 -35/+90  10 6 100 132

CF98.PLUS TPE 3 -35/+90   10 6 100 134 New

CF99.PLUS TPE  3 -35/+90  10 6 100 138 New
Twistable control cables (twistable cables chapter Page 378 )

CF77.UL.D PUR 6.8 +25/+80   384

CFROBOT2 PUR  10 +25/+80   388

ASEAN2023 UL-verified chainflex guarantee ... www.igus-asean.com/ul-verified 53

®
