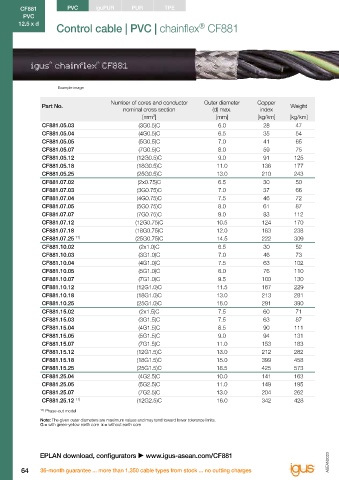

Page 70 - ASEAN Chainflex Catalogue 2023

CF881 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF881
PVC Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PVC
12.5 x d ® Oil resistance none 1 2 3 4 highest 12.5 x d
Control cable | PVC | chainflex CF881 Class 3.1.1.1 Torsion none 1 2 3 4 ±360°

Example image

Number of cores and conductor Outer diameter Copper Order example: CF881.25.25 - to your desired length (0.5m steps)
Part No. Weight
nominal cross section (d) max. index CF881 chainflex series .25 Code nominal cross section .25 Number of cores
®
[mm²] [mm] [kg/km] [kg/km]
CF881.05.03 (3G0.5)C 6.0 28 47 Order online  www.igus-asean.com/CF881
CF881.05.04 (4G0.5)C 6.5 35 54
CF881.05.05 (5G0.5)C 7.0 41 65 Delivery time 24hrs or today.
CF881.05.07 (7G0.5)C 8.0 59 75 Delivery time means time until goods are shipped.
CF881.05.12 (12G0.5)C 9.0 91 125
CF881.05.18 (18G0.5)C 11.0 136 177
CF881.05.25 (25G0.5)C 13.0 210 243
CF881.07.02 (2x0.75)C 6.5 30 50 Cables available in the chainflex CASE
®
CF881.07.03 (3G0.75)C 7.0 37 66
CF881.07.04 (4G0.75)C 7.5 46 72 Simple savings on delivery, storage space and re-ordering with
®
the chainflex CASE - ship'n store by igus .
®
CF881.07.05 (5G0.75)C 8.0 61 87
CF881.07.07 (7G0.75)C 9.0 83 112 More on this on page 24/25 and online: www.igus-asean.com/cf-case
CF881.07.12 (12G0.75)C 10.5 124 170
CF881.07.18 (18G0.75)C 12.0 183 238
CF881.07.25 11) (25G0.75)C 14.5 222 309
CF881.10.02 (2x1.0)C 6.5 30 52
CF881.10.03 (3G1.0)C 7.0 46 73
CF881.10.04 (4G1.0)C 7.5 63 102
CF881.10.05 (5G1.0)C 8.0 76 110
CF881.10.07 (7G1.0)C 9.5 100 130
CF881.10.12 (12G1.0)C 11.5 167 229
CF881.10.18 (18G1.0)C 13.0 213 281
CF881.10.25 (25G1.0)C 16.0 291 390
CF881.15.02 (2x1.5)C 7.5 60 71
CF881.15.03 (3G1.5)C 7.5 63 87
CF881.15.04 (4G1.5)C 8.5 90 111
CF881.15.05 (5G1.5)C 9.0 94 131
CF881.15.07 (7G1.5)C 11.0 153 183
CF881.15.12 (12G1.5)C 13.0 212 282
CF881.15.18 (18G1.5)C 15.0 399 458
CF881.15.25 (25G1.5)C 18.5 425 573
CF881.25.04 (4G2.5)C 10.0 141 163
CF881.25.05 (5G2.5)C 11.0 149 195
CF881.25.07 (7G2.5)C 13.0 204 262
CF881.25.12 11) (12G2.5)C 16.0 342 428
11) Phase-out model
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core

chainflex CF881 in a mobile surgical table
®
EPLAN download, configurators  www.igus-asean.com/CF881
