CF891 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF891
iguPUR Travel distance unsupported 1 2 3 4 5 6 ≥ 400m iguPUR
12.5 x d ® Oil resistance none 1 2 3 4 highest 12.5 x d

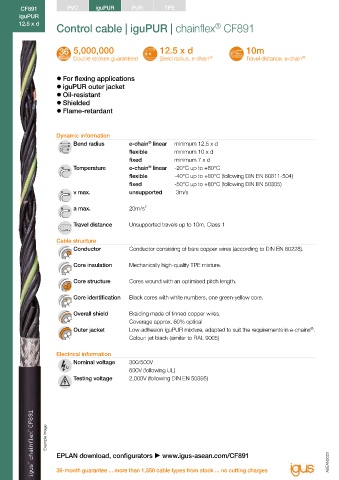

Control cable | iguPUR | chainflex CF891 Class 3.1.3.1 Torsion none 1 2 3 4 ±360°

5,000,000 12.5 x d 10m Properties and approvals Medium
UV resistance
Double strokes guaranteed Bend radius, e-chain ® Travel distance, e-chain ®

Oil resistance Oil-resistant (following DIN EN 50363-10-2), Class 3
z For flexing applications
z iguPUR outer jacket Flame-retardant According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2 / Horizontal Flame
z Oil-resistant
z Shielded Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
z Flame-retardant 1992)
UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
service life calculator based on 2 billion test cycles per year"
Dynamic information UL/CSA AWM See data sheet for details  www.igus-asean.com/CF891
®
Bend radius e-chain linear minimum 12.5 x d
flexible minimum 10 x d EAC Certificate No. RU C-DE.ME77.B.00300/19
fixed minimum 7 x d
®
Temperature e-chain linear -20°C up to +80°C REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
flexible -40°C up to +80°C (following DIN EN 60811-504)
fixed -50°C up to +80°C (following DIN EN 50305) Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)
v max. unsupported 3m/s
CE Following 2014/35/EU
a max. 20m/s²
UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)
Travel distance Unsupported travels up to 10m, Class 1

Cable structure Guaranteed service life (details see page 28-29)
Conductor Conductor consisting of bare copper wires (according to DIN EN 60228). Double strokes* 1 million 3 million 5 million

Temperature, R min. R min. R min.
Core insulation Mechanically high-quality TPE mixture. from/to [°C] [factor x d] [factor x d] [factor x d]
-20/-10 15 16 17
Core structure Cores wound with an optimised pitch length. -10/+70 12.5 13.5 14.5
+70/+80 15 16 17
Core identification Black cores with white numbers, one green-yellow core. * Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife

Overall shield Braiding made of tinned copper wires. Typical application areas
Coverage approx. 60% optical z For flexing applications, Class 3
®
Outer jacket Low-adhesion iguPUR mixture, adapted to suit the requirements in e-chains . z Especially for unsupported travels, Class 1
Colour: jet black (similar to RAL 9005) z With influence of oil, Class 3
z No torsion, Class 1
Electrical information z Indoor and outdoor applications without direct sun radiation
Nominal voltage 300/500V z Machining units/machine tools, low temperature applications
600V (following UL)
Testing voltage 2,000V (following DIN EN 50395)

Example image

EPLAN download, configurators  www.igus-asean.com/CF891
