Page 135 - ASEAN Chainflex Catalogue 2023

CF10.UL PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF10.UL
TPE Travel distance unsupported 1 2 3 4 5 6 ≥ 400m TPE
5 x d ® Oil resistance none 1 2 3 4 highest 5 x d
Control cable | TPE | chainflex CF10.UL Class 6.6.4.1 Torsion none 1 2 3 4 ±360°

Strip cables 50% faster with CFRIP tear strip
®

Example image

Number of cores and conductor Outer diameter Copper ®
Part No. Weight Cables available in the chainflex CASE
nominal cross section (d) max. index
[mm²] [mm] [kg/km] [kg/km] Simple savings on delivery, storage space and re-ordering with
®
®
the chainflex CASE - ship'n store by igus .
CF10.UL.02.04 (4x0.25)C 6.5 24 60
CF10.UL.02.08 (8x0.25)C 8.5 40 94 More on this on page 24/25 and online: www.igus-asean.com/cf-case
CF10.UL.02.12 (12x0.25)C 9.5 64 137
CF10.UL.02.25 (25x0.25)C 12.5 110 241
CF10.UL.05.04 (4x0.5)C 7.5 37 83
CF10.UL.05.05 (5x0.5)C 8.0 44 98
CF10.UL.05.12 (12x0.5)C 11.5 103 211
CF10.UL.05.25 (25x0.5)C 15.5 186 383 Braided in bundles
CF10.UL.07.04 (4G0.75)C 8.0 49 101
CF10.UL.07.05 11) (5G0.75)C 8.5 59 119
CF10.UL.07.07 (7G0.75)C 10.0 89 171
CF10.UL.07.12 (12G0.75)C 12.5 135 268
CF10.UL.07.25 11) (25G0.75)C 17.0 256 489
CF10.UL.10.02 (2x1.0)C 7.5 38 88
CF10.UL.10.03 11) (3G1.0)C 8.0 48 99 Tensile stress-resistant
centre element
CF10.UL.10.04 (4G1.0)C 8.5 61 117
CF10.UL.10.05 11) (5G1.0)C 9.0 72 137
CF10.UL.10.07 (7G1.0)C 11.0 110 204
CF10.UL.10.25 11) (25G1.0)C 18.5 348 608 Gusset-filling extruded inner jacket
CF10.UL.15.04 (4G1.5)C 9.0 83 144
CF10.UL.15.05 11) (5G1.5)C 10.0 111 184
CF10.UL.15.07 17) (7G1.5)C 11.5 148 250 Overall shield with optimised
braiding angle
CF10.UL.15.12 (12G1.5)C 15.0 240 420
CF10.UL.15.18 (18G1.5)C 18.5 365 613
CF10.UL.25.04 (4G2.5)C 11.0 140 232
CF10.UL.25.07 17) (7G2.5)C 14.0 226 369
CF10.UL.25.12 (12G2.5)C 18.5 395 666
CF10.UL.40.04 (4G4.0)C 12.5 205 315

11) Phase-out model
17) When using the cables with "7G1.5mm²" and "7G2.5mm²" minimum bend radius must be 17.5xd with gliding travel distance ≥ 5m.
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core
Pressure extruded
outer jacket

®
®

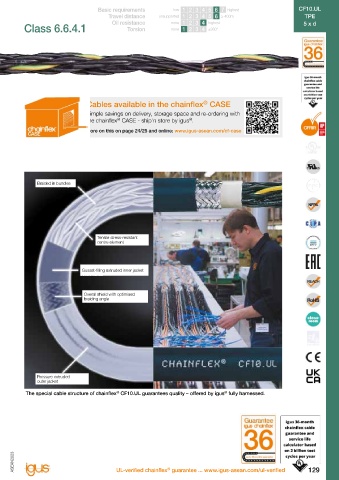

The special cable structure of chainflex CF10.UL guarantees quality – offered by igus fully harnessed.

EPLAN download, configurators  www.igus-asean.com/CF10UL

128 36-month guarantee ... more than 1,350 cable types from stock ... no cutting charges ASEAN2023 ASEAN2023 UL-verified chainflex guarantee ... www.igus-asean.com/ul-verified 129
®
