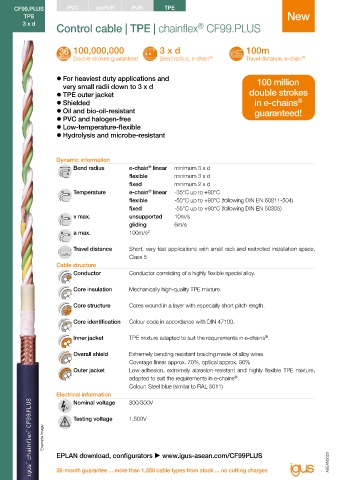

Page 144 - ASEAN Chainflex Catalogue 2023

CF99.PLUS PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF99.PLUS
TPE New Travel distance unsupported 1 2 3 4 5 6 ≥ 400m TPE
3 x d ® Oil resistance none 1 2 3 4 highest 3 x d
Control cable | TPE | chainflex CF99.PLUS Class 7.5.4.1 Torsion none 1 2 3 4 ±360°

100,000,000 3 x d 100m Properties and approvals High
UV resistance
Double strokes guaranteed Bend radius, e-chain ® Travel distance, e-chain ®

Oil resistance Oil-resistant (following DIN EN 60811-404), bio-oil-resistant (following VDMA
z For heaviest duty applications and 100 million 24568 with Plantocut 8 S-MB tested by DEA), Class 4
very small radii down to 3 x d Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
z TPE outer jacket double strokes 1992)
®
z Shielded in e-chains Halogen-free Following DIN EN 60754
z Oil and bio-oil-resistant guaranteed!
z PVC and halogen-free UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
z Low-temperature-flexible service life calculator based on 2 billion test cycles per year"
z Hydrolysis and microbe-resistant EAC Certificate No. RU C-DE.ME77.B.00300/19

REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
Dynamic information
®
Bend radius e-chain linear minimum 3 x d Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)
flexible minimum 3 x d
fixed minimum 2 x d Cleanroom According to ISO Class 1. The outer jacket material of this series complies with
®
Temperature e-chain linear -35°C up to +90°C CF9.15.07 - tested by IPA according to standard DIN EN ISO 14644-1
flexible -50°C up to +90°C (following DIN EN 60811-504) CE Following 2014/35/EU
fixed -55°C up to +90°C (following DIN EN 50305)
v max. unsupported 10m/s UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)
gliding 6m/s
a max. 100m/s 2

Travel distance Short, very fast applications with small radii and restricted installation space, Guaranteed service life (details see page 28-29)
Class 5 Double strokes* 5 million 40 million 100 million

Cable structure Temperature, R min. R min. R min.
Conductor Conductor consisting of a highly flexible special alloy. from/to [°C] [factor x d] [factor x d] [factor x d]
-35/-25 4 6 7
Core insulation Mechanically high-quality TPE mixture. -25/+80 3 5 6
+80/+90 4 6 7
Core structure Cores wound in a layer with especially short pitch length. * Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife

Core identification Colour code in accordance with DIN 47100.
Typical application areas
®
Inner jacket TPE mixture adapted to suit the requirements in e-chains . z For heaviest duty applications and very small radii down to 3 x d, Class 7
z Especially for short, very fast applications with small radii and restricted installation space, Class 5
Overall shield Extremely bending resistant braiding made of alloy wires. z Almost unlimited resistance to oil, also with bio-oils, Class 4
Coverage linear approx. 70%, optical approx. 90% z No torsion, Class 1
Outer jacket Low-adhesion, extremely abrasion-resistant and highly flexible TPE mixture, z Indoor and outdoor applications, UV-resistant
adapted to suit the requirements in e-chains . z Pick and place machines, automatic doors, cleanroom, very quick handling
®
Colour: Steel blue (similar to RAL 5011)
Electrical information
Nominal voltage 300/300V

Testing voltage 1,500V
Example image

EPLAN download, configurators  www.igus-asean.com/CF99PLUS
