Page 155 - ASEAN Chainflex Catalogue 2023

CF240 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF240
PVC Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PVC
10 x d ® Oil resistance none 1 2 3 4 highest 10 x d
Data cable | PVC | chainflex CF240 Class 4.4.2.1 Torsion none 1 2 3 4 ±360°

Example image

Number of cores and conductor Outer diameter Copper Order example: CF240.01.03 - to your desired length (0.5m steps)
Part No. Weight
nominal cross section (d) max. index CF240 chainflex series .01 Code nominal cross section .03 Number of cores
®
[mm²] [mm] [kg/km] [kg/km]
CF240.01.03 (3x0.14)C 4.5 12 28 Order online  www.igus-asean.com/CF240
CF240.01.04 (4x0.14)C 5.0 17 32
CF240.01.05 (5x0.14)C 5.5 19 37 Delivery time 24hrs or today.
CF240.01.07 (7x0.14)C 6.0 25 47 Delivery time means time until goods are shipped.
CF240.01.14 (14x0.14)C 7.0 41 75
CF240.01.18 (18x0.14)C 7.5 51 90
CF240.01.24 (24x0.14)C 8.5 64 125
CF240.02.03 (3x0.25)C 5.0 19 35
CF240.02.04 (4x0.25)C 5.5 23 45
CF240.02.05 (5x0.25)C 6.0 28 49
CF240.02.07 (7x0.25)C 6.5 35 61
CF240.02.08 (8x0.25)C 7.0 39 68
CF240.02.14 (14x0.25)C 7.5 60 92
CF240.02.18 (18x0.25)C 8.5 71 122
CF240.02.24 (24x0.25)C 10.0 95 161
CF240.03.02 (2x0.34)C 5.5 21 37
CF240.03.03 (3x0.34)C 5.5 29 42
CF240.03.04 (4x0.34)C 6.0 33 51
CF240.03.05 (5x0.34)C 6.5 38 56
CF240.03.07 (7x0.34)C 7.5 50 77
CF240.03.10 (10x0.34)C 8.0 58 97
CF240.03.14 (14x0.34)C 8.0 74 112
CF240.03.18 (18x0.34)C 9.0 91 139
CF240.03.24 (24x0.34)C 10.0 119 177

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core

®

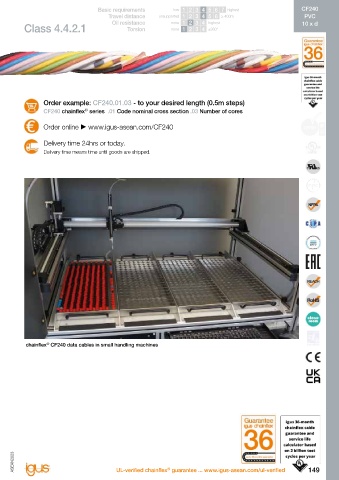

chainflex CF240 data cables in small handling machines
®
Cables available in the chainflex CASE
Simple savings on delivery, storage space and re-ordering with
®
the chainflex CASE - ship'n store by igus .
®
More on this on page 24/25 and online: www.igus-asean.com/cf-case

EPLAN download, configurators  www.igus-asean.com/CF240

148 36-month guarantee ... more than 1,350 cable types from stock ... no cutting charges ASEAN2023 ASEAN2023 UL-verified chainflex guarantee ... www.igus-asean.com/ul-verified 149
®
