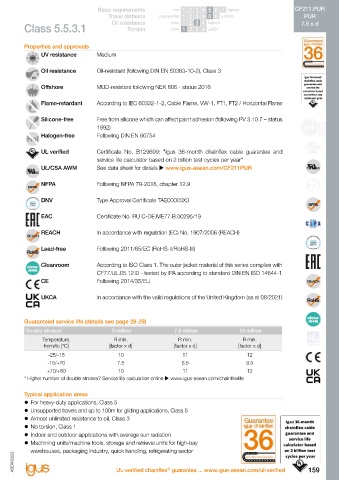

Page 165 - ASEAN Chainflex Catalogue 2023

CF211.PUR PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF211.PUR
PUR Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PUR
7.5 x d ® Oil resistance none 1 2 3 4 highest 7.5 x d
Data cable | PUR | chainflex CF211.PUR Class 5.5.3.1 Torsion none 1 2 3 4 ±360°

10 million 7.5 x d 100m Properties and approvals Medium
UV resistance
Double strokes guaranteed Bend radius, e-chain ® Travel distance, e-chain ®

Oil resistance Oil-resistant (following DIN EN 50363-10-2), Class 3
z For heavy duty applications z Flame-retardant
z PUR outer jacket z PVC and halogen-free Offshore MUD-resistant following NEK 606 - status 2016
z Shielded, twisted pair z Notch-resistant
z Oil-resistant and coolant-resistant z Hydrolysis and microbe-resistant Flame-retardant According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2 / Horizontal Flame

Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
Dynamic information 1992)
Bend radius e-chain linear minimum 7.5 x d Halogen-free Following DIN EN 60754
®
flexible minimum 6 x d
fixed minimum 4 x d UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
®
Temperature e-chain linear -25°C up to +80°C service life calculator based on 2 billion test cycles per year"
flexible -40°C up to +80°C (following DIN EN 60811-504) UL/CSA AWM See data sheet for details  www.igus-asean.com/CF211PUR
fixed -50°C up to +80°C (following DIN EN 50305)
v max. unsupported 5m/s NFPA Following NFPA 79-2018, chapter 12.9
gliding 3m/s
a max. 50m/s² DNV Type Approval Certificate TAE00003X3

Travel distance Unsupported travels and up to 100m for gliding applications, Class 5 EAC Certificate No. RU C-DE.ME77.B.00295/19

Cable structure REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
Conductor Very finely stranded special conductors of particularly bending resistant design
made of bare copper wires. Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)
Core insulation Mechanically high-quality TPE mixture.
Cleanroom According to ISO Class 1. The outer jacket material of this series complies with
Core structure Cores twisted in pairs with a short pitch length, core pairs then wound with CF77.UL.05.12.D - tested by IPA according to standard DIN EN ISO 14644-1
short pitch lengths. CE Following 2014/35/EU
Core identification Colour code in accordance with DIN 47100.
UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)
Intermediate layer Foil taping over the outer layer.

Overall shield Extremely bending-resistant braiding made of tinned copper wires. Guaranteed service life (details see page 28-29)
Coverage linear approx. 70%, optical approx. 90% Double strokes* 5 million 7.5 million 10 million

Outer jacket Low-adhesion, halogen-free, highly abrasion resistant PUR mixture, adapted Temperature, R min. R min. R min.
®
to suit the requirements in e-chains (following DIN EN 50363-10-2) from/to [°C] [factor x d] [factor x d] [factor x d]
Colour: Window-grey (similar to RAL 7040) -25/-15 10 11 12
Electrical information -15/+70 7.5 8.5 9.5
Nominal voltage 300/300V (following DIN VDE 0298-3) +70/+80 10 11 12
300V (following UL) * Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife
Testing voltage 1,500V (following DIN EN 50395)
Typical application areas
z For heavy-duty applications, Class 5
z Unsupported travels and up to 100m for gliding applications, Class 5
z Almost unlimited resistance to oil, Class 3
No torsion, Class 1
Example image z Indoor and outdoor applications with average sun radiation
z
Machining units/machine tools, storage and retrieval units for high-bay
z
EPLAN download, configurators  www.igus-asean.com/CF211PUR warehouses, packaging industry, quick handling, refrigerating sector
