CF112 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF112
PUR Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PUR
10 x d ® Oil resistance none 1 2 3 4 highest 10 x d
Data cable | PUR | chainflex CF112 Class 6.5.3.1 Torsion none 1 2 3 4 ±360°

Example image

Number of cores and conductor Outer diameter Copper
Part No. Weight
nominal cross section (d) max. index
[mm²] [mm] [kg/km] [kg/km]
CF112.02.02.02 (2x(2x0.25)C)C 9.5 57 118
CF112.02.03.02 (3x(2x0.25)C)C 10.0 71 133
CF112.02.04.02 (4x(2x0.25)C)C 11.0 78 153
CF112.02.05.02 (5x(2x0.25)C)C 11.5 99 178
CF112.05.02.02 (2x(2x0.5)C)C 11.5 75 163
CF112.05.04.02 (4x(2x0.5)C)C 13.0 117 217
CF112.05.06.02 (6x(2x0.5)C)C 14.5 160 285

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core

Cables available in the chainflex CASE
®
Simple savings on delivery, storage space and re-ordering with
®
®
the chainflex CASE - ship'n store by igus .
More on this on page 24/25 and online: www.igus-asean.com/cf-case

Order example: CF112.02.02.02 - to your desired length (0.5m steps)
CF112 chainflex series .02 Code nominal cross section .02 Number of cores .02 Identification pairs
®
Order online  www.igus-asean.com/CF112

Delivery time 24hrs or today.
Delivery time means time until goods are shipped.

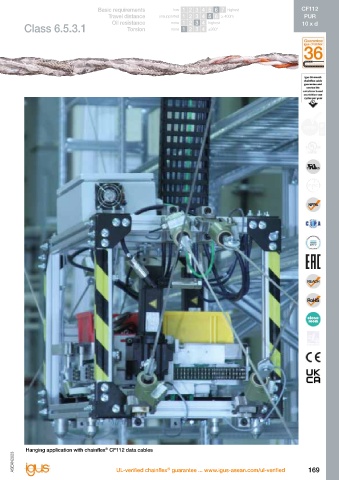

Hanging application with chainflex CF112 data cables
®
EPLAN download, configurators  www.igus-asean.com/CF112
