CFKoax PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CFKoax
TPE Travel distance unsupported 1 2 3 4 5 6 ≥ 400m TPE
10 x d ® Oil resistance none 1 2 3 4 highest 10 x d

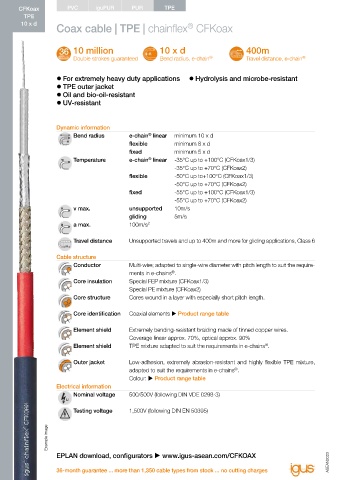

Coax cable | TPE | chainflex CFKoax Class 6.6.4.1 Torsion none 1 2 3 4 ±360°

10 million 10 x d 400m Properties and approvals Medium
UV resistance
Double strokes guaranteed Bend radius, e-chain ® Travel distance, e-chain ®

Oil resistance Oil-resistant (following DIN EN 60811-404), bio-oil-resistant (following VDMA
z For extremely heavy duty applications z Hydrolysis and microbe-resistant 24568 with Plantocut 8 S-MB tested by DEA), Class 4
z TPE outer jacket Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
z Oil and bio-oil-resistant 1992)
z UV-resistant UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
service life calculator based on 2 billion test cycles per year"
EAC Certificate No. RU C-DE.ME77.B.00300/19
Dynamic information
Bend radius e-chain linear minimum 10 x d REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
®
flexible minimum 8 x d
fixed minimum 5 x d Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)
Temperature e-chain linear -35°C up to +100°C (CFKoax1/3)
®
-35°C up to +70°C (CFKoax2) Cleanroom According to ISO Class 1. The outer jacket material of this series complies with
flexible -50°C up to+100°C (CFKoax1/3) CF9.15.07 - tested by IPA according to standard DIN EN ISO 14644-1
-50°C up to +70°C (CFKoax2) CE Following 2014/35/EU
fixed -55°C up to +100°C (CFKoax1/3)
-55°C up to +70°C (CFKoax2) UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)
v max. unsupported 10m/s
gliding 5m/s Info The coaxial elements used in cables of the CFKoax1 series are comparable
a max. 100m/s² with a HF75-0.3/1.6 according to MIL-C-17/94-RG179 and thus fit into an
RG179 plug!
Travel distance Unsupported travels and up to 400m and more for gliding applications, Class 6 The coaxial elements used in cables of the CFKoax2 series are comparable
with a HF50-0.9/2.95 according to MIL-C-17/28-RG58 and thus fit into an
Cable structure RG58 plug!
Conductor Multi-wire; adapted to single-wire diameter with pitch length to suit the require- The coaxial elements used in cables of the CFKoax3 series are comparable
®
ments in e-chains . with a HF50-0.3/0.84 according to MIL-C-17/93-RG178 and thus fit into an
Core insulation Special FEP mixture (CFKoax1/3) RG178 plug!
Special PE mixture (CFKoax2)
Core structure Cores wound in a layer with especially short pitch length. Guaranteed service life (details see page 28-29)
Double strokes* 5 million 7.5 million 10 million
Core identification Coaxial elements  Product range table Temperature, R min. R min. R min.
from/to [°C] [factor x d] [factor x d] [factor x d]
Element shield Extremely bending-resistant braiding made of tinned copper wires. -35/-25 12.5 13.5 14.5
Coverage linear approx. 70%, optical approx. 90% -25/+60 (CFKoax2) 10 11 12
®
Element shield TPE mixture adapted to suit the requirements in e-chains . -25/+90 (CFKoax1/CFKoax3) 10 11 12
+60/+70 (CFKoax2) 12.5 13.5 14.5
Outer jacket Low-adhesion, extremely abrasion-resistant and highly flexible TPE mixture, +90/+100 (CFKoax1/CFKoax3) 12.5 13.5 14.5
adapted to suit the requirements in e-chains . * Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife
®
Colour:  Product range table
Electrical information Typical application areas
Nominal voltage 500/500V (following DIN VDE 0298-3) z For heavy-duty applications, Class 6
z Unsupported travels and up to 400m and more for gliding applications, Class 6
Testing voltage 1,500V (following DIN EN 50395) z Almost unlimited resistance to oil, also with bio-oils, Class 4
z No torsion, Class 1
Indoor and outdoor applications with average sun radiation
Example image z Storage and retrieval units for high-bay warehouses, machining units/machine tools,
z
quick handling, cleanroom, semiconductor insertion, indoor cranes, low temperature

EPLAN download, configurators  www.igus-asean.com/CFKOAX applications

®
