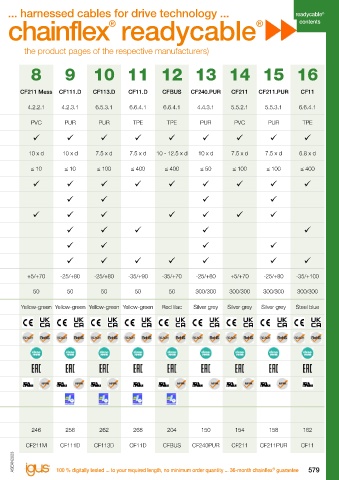

Selection chart for igus chainflex cables (you can find the green number on the product pages of the respective manufacturers)
®
®
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

chainflex series CF31 CF35.UL CF38 CF210.UL CF21.UL CF270.UL.D CF27.D CF211 Mess CF111.D CF113.D CF11.D CFBUS CF240.PUR CF211 CF211.PUR CF11
®

Class 5.5.2.1 6.6.4.1 7.6.4.1 4.2.2.1 5.5.2.1 4.2.3.1 6.5.3.1 4.2.2.1 4.2.3.1 6.5.3.1 6.6.4.1 6.6.4.1 4.4.3.1 5.5.2.1 5.5.3.1 6.6.4.1

Outer jacket PVC TPE TPE PVC PVC PUR PUR PVC PUR PUR TPE TPE PUR PVC PUR TPE

Shielded                

Minimum bend radius 7.5 x d 7.5 x d 7.5 x d 10 x d 7.5 x d 10 x d 7.5 x d 10 x d 10 x d 7.5 x d 7.5 x d 10 - 12.5 x d 10 x d 7.5 x d 7.5 x d 6.8 x d

Travel distance [m] ≤ 100 ≤ 400 ≤ 400 ≤ 10 ≤ 100 ≤ 10 ≤ 100 ≤ 10 ≤ 10 ≤ 100 ≤ 400 ≤ 400 ≤ 50 ≤ 100 ≤ 100 ≤ 400

Oil-resistant                

Oil-/coolant-resistant      

Flame-retardant             

Halogen-free        

Notch-resistant      

Hydrolysis and           
microbe-resistant
Temperature, -5/+70 -35/+90 -35/+90 +5/+70 +5/+70 -25/+80 -25/+80 +5/+70 -25/+80 -25/+80 -35/+90 -35/+70 -25/+80 +5/+70 -25/+80 -35/+100
from/to [°C]

Nominal voltage [V] 600/1,000 600/1,000 600/1,000 600/1,000 600/1,000 600/1,000 600/1,000 50 50 50 50 50 300/300 300/300 300/300 300/300

Colour Jet black Signal black Jet black Pastel orange Moss green Pastel orange Pastel orange Yellow-green Yellow-green Yellow-green Yellow-green Red lilac Silver grey Silver grey Silver grey Steel blue

CE/UKCA

REACH/RoHS

Cleanroom

EAC

UL/CSA + NFPA

Desina

More information

Catalogue page 328 348 354 282 286 292 296 246 256 262 268 204 150 154 158 162

www.igus-asean.com/ CF31 CF35UL CF38 CF210UL CF21UL CF270ULD CF27D CF211M CF111D CF113D CF11D CFBUS CF240PUR CF211 CF211PUR CF11
ASEAN2023 ASEAN2023

578 EPLAN download, configurators  www.igus-asean.com/readycable 100 % digitally tested ... to your required length, no minimum order quantity ... 36-month chainflex guarantee 579
®
