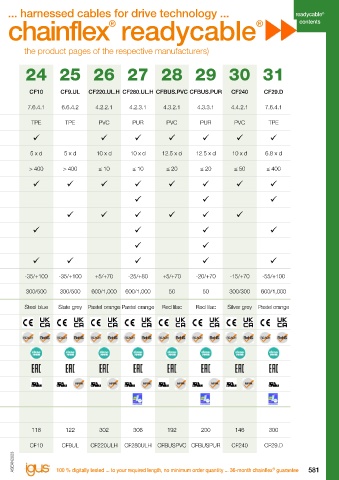

Selection chart for igus chainflex cables (you can find the green number on the product pages of the respective manufacturers)
®
®
17 18 19 20 21 22 23 24 25 26 27 28 29 30 31

chainflex series CF130.UL CF140.UL CF5 CF6 CF77.UL.D CF78.UL CF9 CF10 CF9.UL CF220.UL.H CF280.UL.H CFBUS.PVC CFBUS.PUR CF240 CF29.D
®

Class 4.4.1.1 4.4.1.1 5.5.2.1 5.5.2.1 5.5.3.1 5.5.3.1 7.6.4.2 7.6.4.1 6.6.4.2 4.2.2.1 4.2.3.1 4.3.2.1 4.3.3.1 4.4.2.1 7.6.4.1

Outer jacket PVC PVC PVC PVC PUR PUR TPE TPE TPE PVC PUR PVC PUR PVC TPE

Shielded          

Minimum bend radius 7.5 x d 7.5 x d 6.8 x d 6.8 x d 6.8 x d 6.8 x d 5 x d 5 x d 5 x d 10 x d 10 x d 12.5 x d 12.5 x d 10 x d 6.8 x d

Travel distance [m] ≤ 50 ≤ 50 ≤ 50 ≤ 50 ≤ 100 ≤ 100 > 400 > 400 > 400 ≤ 10 ≤ 10 ≤ 20 ≤ 20 ≤ 50 ≤ 400

Oil-resistant             

Oil-/coolant-resistant     

Flame-retardant            

Halogen-free       

Notch-resistant    

Hydrolysis and        
microbe-resistant
Temperature, +5/+70 +5/+70 +5/+70 +5/+70 -25/+80 -25/+80 -35/+100 -35/+100 -35/+100 +5/+70 -25/+80 +5/+70 -20/+70 -15/+70 -55/+100
from/to [°C]

Nominal voltage [V] 300/500 300/500 300/500 300/500 300/500 300/500 300/500 300/500 300/500 600/1,000 600/1,000 50 50 300/300 600/1,000

Colour Silver grey Silver grey Moss green Moss green Window grey Window grey Steel blue Steel blue Slate grey Pastel orange Pastel orange Red lilac Red lilac Silver grey Pastel orange

CE/UKCA

REACH/RoHS

Cleanroom

EAC

UL/CSA + NFPA

Desina

More information

Catalogue page 66 70 82 86 102 106 114 118 122 302 306 192 200 146 300

www.igus-asean.com/ CF130 CF140 CF5 CF6 CF77 CF78 CF9 CF10 CF9UL CF220ULH CF280ULH CFBUSPVC CFBUSPUR CF240 CF29.D
ASEAN2023 ASEAN2023
