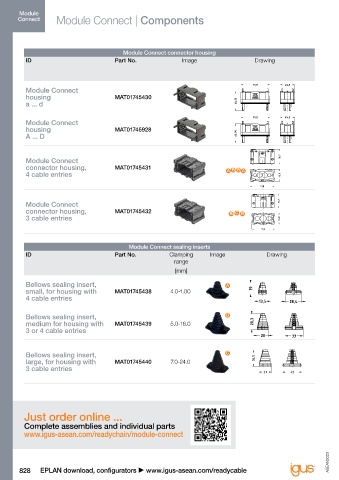

Page 834 - ASEAN Chainflex Catalogue 2023

Module Module
Connect Module Connect | Components Module Connect | Components Connect

Module Connect connector housing Module Connect accessories
ID Part No. Image Drawing ID Part No. Image Drawing

Module Connect
housing MAT01745430
a ... d Double locking MAT01745433

Module Connect
housing MAT01745928
A ... D Single locking MAT01745434

Module Connect
connector housing, MAT01745431 A B B A
4 cable entries Fastening element MAT01745435

Module Connect
connector housing, MAT01745432 B C B Strain relief
3 cable entries Module Connect MAT01745437
connector housing,
4 cable entries

Module Connect sealing inserts
ID Part No. Clamping Image Drawing Strain relief
range Module Connect MAT01745436
[mm] connector housing,
3 cable entries
Bellows sealing insert, A
small, for housing with MAT01745438 4.0-1.00
4 cable entries

Dimensional drawing
Bellows sealing insert, B
medium for housing with MAT01745439 5.0-16.0
3 or 4 cable entries

Bellows sealing insert, C
large, for housing with MAT01745440 7.0-24.0
3 cable entries

Just order online ...
Complete assemblies and individual parts
www.igus-asean.com/readychain/module-connect
