FCT/molex FCT/molex
company FCT/molex company | Connectors SUB-D FCT/molex company | SUB-D | Size 1 9-pole - HD 15-pole company
SUB-D SUB-D

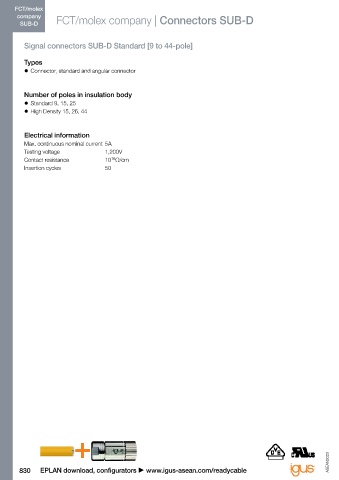

Signal connectors SUB-D Standard [9 to 44-pole]

Types
z Connector, standard and angular connector

Metal hood, straight
Number of poles in insulation body Part No. Solder contact pin
z Standard 9, 15, 25
z High Density 15, 26, 44 MAT01716504 Pin, standard
9-pole
Socket, standard
MAT01716505
Electrical information 9-pole
Max. continuous nominal current 5A MAT01716506 Pin, HighDensity
Testing voltage 1,200V 15-pole
16
Contact resistance 10 Ω/cm MAT01716507 Socket, HighDensity
Insertion cycles 50 15-pole

Metal hood, angled
Part No. Solder contact pin

Pin, standard
MAT01716508
9-pole
Socket, standard
MAT01716509
9-pole
Pin, HighDensity
MAT01716510
15-pole
Socket, HighDensity
MAT01716511
15-pole

+ Crimping tools and inserts  Page 818
