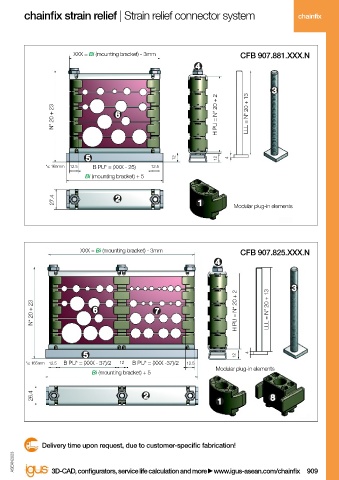

chainfix chainfix strain relief | Strain relief connector system chainfix strain relief | Strain relief connector system chainfix

XXX = Bi (mounting bracket) - 3mm CFB 907.881.XXX.N
CFB strain relief connector system - polymer, modular, can
be mounted into the C-profile
● Customised strain relief solutions can be offered
● 2 options available, cost-effective and strong
● Fast assembly with bolted connection
● Can be mounted in the mounting bracket or in front of the
e-chain ® H PU = N* 20 + 2 LLL = N* 20 + 13
● Customised production from 1 piece N* 20 + 23

CFB strain relief connector system | Series 907.881 Please consult igus when
®
designing this product 12 12 4
Parts list Part No. Quantity
*≤ 165mm 12.5 B PU* = (XXX - 25) 12.5
Description Bi (mounting bracket) + 5
Outer fixing block CFB20.1 N x 2
Clamping bar 907.881.1.XXX 2
Threaded bolt with plate 907.825.2.LLL 2 27.4
Hexagon nut M8 MAT 0040012 2 Modular plug-in elements
C-profile (part of KMA) 92.42.XXX 1
Strain relief block Customer-specific 1

Order key
907.881.XXX.N XXX = Bi (mounting bracket) - 3mm CFB 907.825.XXX.N

N = Number of layers of fixing blocks
XXX = Bi - 3mm (mounting bracket)
Part No. with version 881

CFB strain relief connector system | Series 907.825 Please consult igus when
®
designing this product H PU = N* 20 + 2 LLL = N* 20 + 13
Parts list Part No. Quantity N* 20 + 23
Description
Outer fixing block CFB20.1 N x 2
Clamping bar 907.825.1.XXX 2
Threaded bolt with plate 907.825.2.LLL 3 4
Hexagon nut M8 MAT 0040012 3 12
*≤ 165mm 12.5 B PU* = (XXX - 37)/2 12 B PU* = (XXX -37)/2 12.5
C-profile (part of KMA) 92.42.XXX 1 Bi (mounting bracket) + 5 Modular plug-in elements
Strain relief block Customer-specific 1
Strain relief block Customer-specific 1
Inner fixing block CFB20.2 N 26.4

Order key
907.825.XXX.N

N = Number of layers of fixing blocks
XXX = Bi - 3mm (mounting bracket) Delivery time upon request, due to customer-specific fabrication!
Part No. with version 825

908 More information www.igus-asean.com/CFB ASEAN2023 ASEAN2023 3D-CAD, configurators, service life calculation and more www.igus-asean.com/chainfix 909
