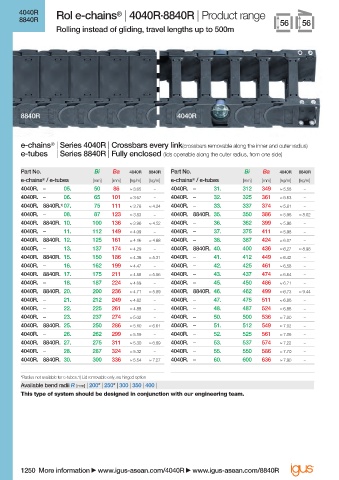

4040R Rol e-chains | 4040R·8840R | Product range
®
8840R 56 56
Rolling instead of gliding, travel lengths up to 500m

8840R 4040R

®
e-chains | Series 4040R | Crossbars every link(crossbars removable along the inner and outer radius)
e-tubes | Series 8840R | Fully enclosed (lids openable along the outer radius, from one side)
Part No. Bi Ba 4040R 8840R Part No. Bi Ba 4040R 8840R
e-chains ® / e-tubes [mm] [mm] [kg/m] [kg/m] e-chains ® / e-tubes [mm] [mm] [kg/m] [kg/m]
4040R. – 05. 50 86 ≈ 3.65 – 4040R. – 31. 312 349 ≈ 5.58 –
4040R. – 06. 65 101 ≈ 3.67 – 4040R. – 32. 325 361 ≈ 5.63 –
4040R. 8840R. 1) 07. 75 111 ≈ 3.78 ≈ 4.24 4040R. – 33. 337 374 ≈ 5.81 –
4040R. – 08. 87 123 ≈ 3.83 – 4040R. 8840R. 35. 350 386 ≈ 5.96 ≈ 8.02
4040R. 8840R. 10. 100 136 ≈ 3.96 ≈ 4.52 4040R. – 36. 362 399 ≈ 5.96 –
4040R. – 11. 112 149 ≈ 4.09 – 4040R. – 37. 375 411 ≈ 5.98 –
4040R. 8840R. 12. 125 161 ≈ 4.16 ≈ 4.88 4040R. – 38. 387 424 ≈ 6.07 –
4040R. – 13. 137 174 ≈ 4.29 – 4040R. 8840R. 40. 400 436 ≈ 6.27 ≈ 8.98
4040R. 8840R. 15. 150 186 ≈ 4.36 ≈ 5.31 4040R. – 41. 412 449 ≈ 6.42 –
4040R. – 16. 162 199 ≈ 4.47 – 4040R. – 42. 425 461 ≈ 6.58 –
4040R. 8840R. 17. 175 211 ≈ 4.58 ≈ 5.56 4040R. – 43. 437 474 ≈ 6.64 –
4040R. – 18. 187 224 ≈ 4.69 – 4040R. – 45. 450 486 ≈ 6.71 –
4040R. 8840R. 20. 200 236 ≈ 4.71 ≈ 5.89 4040R. 8840R. 46. 462 499 ≈ 6.73 ≈ 9.44
4040R. – 21. 212 249 ≈ 4.82 – 4040R. – 47. 475 511 ≈ 6.86 –
4040R. – 22. 225 261 ≈ 4.88 – 4040R. – 48. 487 524 ≈ 6.88 –
4040R. – 23. 237 274 ≈ 5.02 – 4040R. – 50. 500 536 ≈ 7.00 –
4040R. 8840R. 25. 250 286 ≈ 5.10 ≈ 6.61 4040R. – 51. 512 549 ≈ 7.02 –
4040R. – 26. 262 299 ≈ 5.19 – 4040R. – 52. 525 561 ≈ 7.06 –
4040R. 8840R. 27. 275 311 ≈ 5.30 ≈ 6.89 4040R. – 53. 537 574 ≈ 7.22 –
4040R. – 28. 287 324 ≈ 5.32 – 4040R. – 55. 550 586 ≈ 7.70 –
4040R. 8840R. 30. 300 336 ≈ 5.54 ≈ 7.27 4040R. – 60. 600 636 ≈ 7.90 –

*Radius not available for e-tubes.1) Lid removable only, no hinged option
Available bend radii R [mm] | 200* | 250* | 300 | 350 | 400 |
This type of system should be designed in conjunction with our engineering team.

1250 More information www.igus-asean.com/4040R www.igus-asean.com/8840R
