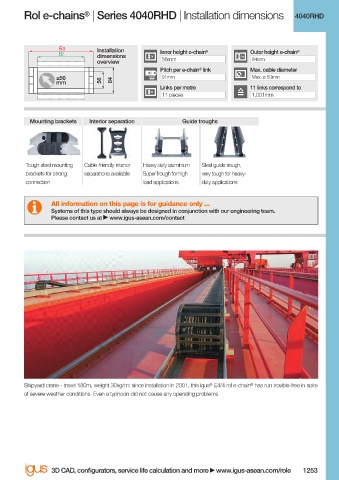

Rol e-chains | Series 4040RHD | Installation dimensions 4040RHD
®

Ba Installation
Bi Inner height e-chain ® Outer height e-chain ®
dimensions hi ha
overview 56mm 84mm
Pitch per e-chain ® link Max. cable diameter
≤50 84 mm 91mm Max. ø 50mm
mm 56
Links per metre 11 links correspond to
hi
11 pieces 1,001mm

Mounting brackets Interior separation Guide troughs

Tough steel mounting Cable-friendly interior Heavy duty aluminium Steel guide trough,
brackets for strong separations available SuperTrough for high very tough for heavy-
connection load applications duty applications

All information on this page is for guidance only ...
Systems of this type should always be designed in conjunction with our engineering team.
Please contact us at www.igus-asean.com/contact

Shipyard crane - travel 180m, weight 30kg/m: since installation in 2001, this igus ® E4/4 rol e-chain ® has run trouble-free in spite
of severe weather conditions. Even a typhoon did not cause any operating problems

3D CAD, confi gurators, service life calculation and more www.igus-asean.com/role 1253
