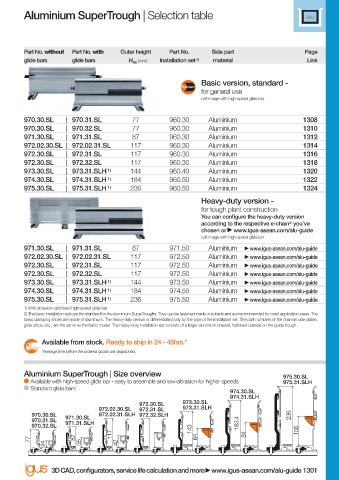

Aluminium SuperTrough | Selection table Alu

Part No. without Part No. with Outer height Part No. Side part Page
glide bars glide bars H Ra [mm] Installation set 2) material Link

Basic version, standard -
for general use
Left image with high-speed glide bar

970.30.SL | 970.31.SL 77 960.30 Aluminium 1308
970.30.SL | 970.32.SL 77 960.30 Aluminium 1310
971.30.SL | 971.31.SL 87 960.30 Aluminium 1312
972.02.30.SL | 972.02.31.SL 117 960.30 Aluminium 1314
972.30.SL | 972.31.SL 117 960.30 Aluminium 1316
972.30.SL | 972.32.SL 117 960.30 Aluminium 1318
973.30.SL | 973.31.SLH 1) 144 960.40 Aluminium 1320
974.30.SL | 974.31.SLH 1) 184 960.50 Aluminium 1322
975.30.SL | 975.31.SLH 1) 236 960.50 Aluminium 1324
Heavy-duty version -
for tough plant construction
You can confi gure the heavy-duty version
according to the respective e-chain ® you’ve
chosen or www.igus-asean.com/alu-guide
Left image with high-speed glide bar
971.30.SL | 971.31.SL 87 971.50 Aluminium www.igus-asean.com/alu-guide
972.02.30.SL | 972.02.31.SL 117 972.50 Aluminium www.igus-asean.com/alu-guide
972.30.SL | 972.31.SL 117 972.50 Aluminium www.igus-asean.com/alu-guide
972.30.SL | 972.32.SL 117 972.50 Aluminium www.igus-asean.com/alu-guide
973.30.SL | 973.31.SLH 1) 144 973.50 Aluminium www.igus-asean.com/alu-guide
974.30.SL | 974.31.SLH 1) 184 974.50 Aluminium www.igus-asean.com/alu-guide
975.30.SL | 975.31.SLH 1) 236 975.50 Aluminium www.igus-asean.com/alu-guide
1) With abrasion-optimised high-speed glide bar
2) The basic Installation sets are the standard for the aluminium SuperTroughs. They can be fastened inside or outside and are recommended for most application areas. The
basic clamping shoes are made of aluminium. The heavy-duty version is diff erentiated only by the type of the installation set. The part numbers of the channel side plates,
glide strips, etc., are the same as the basic model. The heavy-duty installation set consists of a larger aluminium bracket, fastened outside on the guide trough.
Available from stock. Ready to ship in 24 - 48hrs.*
*Average time before the ordered goods are dispatched.

Aluminium SuperTrough | Size overview
975.30.SL
Available with high-speed glide bar - easy to assemble and low-abrasion for higher speeds 975.31.SLH
Standard glide bars
974.30.SL
974.31.SLH
972.30.SL 973.30.SL
972.02.30.SL 972.31.SL 973.31.SLH
970.30.SL 971.30.SL 972.02.31.SLH 972.32.SLH 236
970.31.SL
970.32.SL 971.31.SLH 183.4 108
77 87 42 117 64 143 84
24 35

3D CAD, confi gurators, service life calculation and more www.igus-asean.com/alu-guide 1301
